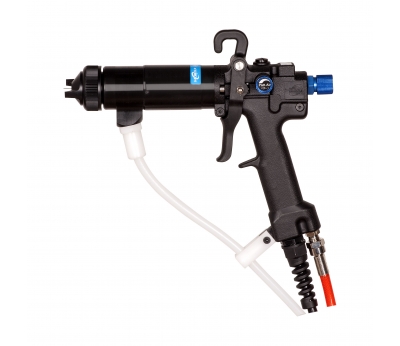

HONGDA SPRAY HDA-100 Manual electrostatic spray gun

Cascade type high safety feature

hight voltage cable with detachable connector for easy maintenance
Teflon fluid hose which is easy to clean and maintain.

hotline & wechat 86 13622624429

HONGDA SPRAY HDA-100 Manual electrostaitc spray gun

Applications:



car( car, auto parts, plastic products)  mechanical and electrical(distribution, controller, air conditioning equipment, OA equipment hone appliance products)

 buliding materials, furniture( office quipment, copper sanctions, furniture, window frames fences, building materials, boards)

Machinery( buliding materials, machinery, industrial machinery, agricultural machinery)  othe( metal products, electroplating products, carpentry products, etc

HDA-100 Manual electrostatic liquid spray paint gun

Max voltage		DC-60KV
hydraulic pressure	Max	0-0.3Mpa
	standard	0.6Mpa
air pressure	Max	0.05-0.5Mpa
	standard	0.06Mpa
air consumption		350Nl/mm
ari bore		screw bore PF 1/4
paint bore		screw bore PF 1/4
Length		248mm
supply cable (standard)		5M/6M/8M/10M
weight(without nozzle & cables)		480g

Paint adjuster:

adjusts paint discharge

paint hose:

air hose to supply air required for atomization of paint and pattern creation to the coating machine, connect it between the air regulator of the electrostatic controller and coating machine.

a grounding wire is contained; therefore, the ground of the coating machine can also be secured through the air path and safety is improved.

paint hose for sending paint form the pump to the coating machine, a flexible tube is employed to improve the handing of the gun

Principle of spraying：

HONGDA SPRAY HDA-160 electrostatic controller

Output adjustment		-15-60KV
high voltage switch		Air flow switch
supply voltage		AC110V-220VHZ
dimension		220X145X270
application environment		temperature 0-45℃
		dampness 20-80℃
weight		6.5kgs without holder

The high pressure curve is set up, and the output DC high voltage is stable. After fine atomization, the coated particles produce electrostatic surround effect under the influence of the electrostatic field force, thus improving the coating rate (coating efficiency);
2 、 adopt electronic switch mode, over current, automatic power off and discharge, start buzzer alarm, high safety;
3, according to the spraying conditions, stepless adjustment of the high voltage, suitable for all types of work and coating, convenient voltage trimming requirements;

Optional Nozzle:

Demo performance

standard installation:
