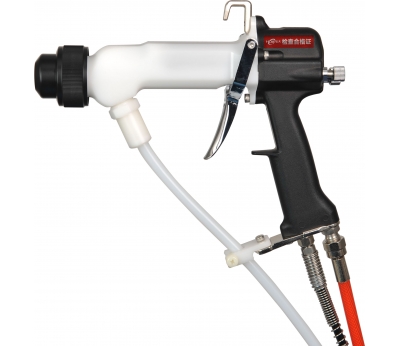

    HDA-1020 Manual electrostatic spray

    Intro

    HDA -1020 Manual electrostatic gun is a spray coating of fine, high efficiency good durability, high safety electrostatic spray gun.

    .Save paint about 20%-30%

    . spraying time about30% shorter than before

    .reduce spray paint

    .Save costs, reduce emissions

    Description

    HDA -1020 Manual electrostatic gun applications

    Car, auto parts, resin moldings

    mechanical and electrical,(distribution, air conditioning equipment, OA equipment, hone appliance prodcuts)

    Bulding materials, furniture,( office equipment, copper sanctions, furniture, window frames)

    machinery (building materials, machinery, industrial machinery, agricultural machinery)

    other metal product

    HDA -1020 Manual electrostatic gun



    Max voltage DC-60KV
    hydraulic pressure Max 0-0.3Mpa
    standard 0.6Mpa
    air pressure Max 0.05-0.4Mpa
    standard 0.06Mpa
           air consumption 350N1/mm
           ari bore screw bore PF 1/4
           paint bore screw bore PF 1/4
           Length 231mm
          supply cable (standard) 5M/8M/30M
    weight(without nozzle & cables) 490g

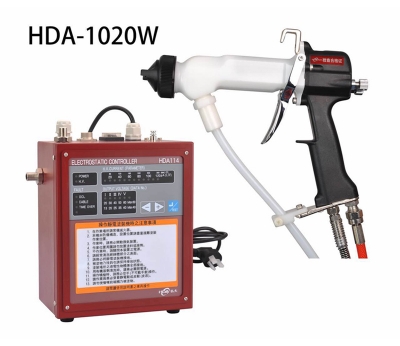

    HDA114  electrostatic controller for HDA-1020 Manual electrostatic gun

    hdaspryagun electrostatic spray gun

            outup ajustment DC-20-60KV
            voltage  AC24V
    Maximum current 80uA
            supply voltage AC220V±10%
            Dimention 260X160X350mm
       application environment temperature 0-45℃
     dampness 20-85℃
            weight 4.5kgs
