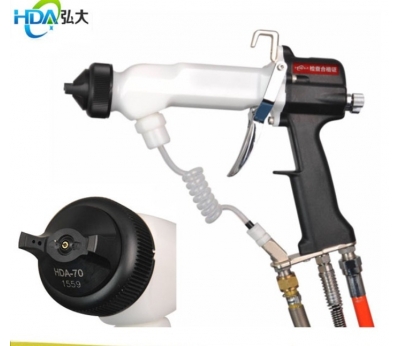

HAD-1020 High pressure air manual electrostatic liquid paint spray gun

High efficiency – save paint - environmental protection - low pressure atomization

High efficiency coating and outstanding operability

The new design is lighter, more flexible, more suitable for long time spray use

• excellent paint effect, more efficient paint

• contribution to environmental improvement and VOC mitigation! *VOC: volatile organic compounds



High security

Because the built-in high voltage generator is inside the gun body,

So high security has been achieved.

Excellent machining

Equipped with excellent micronized HDA-60 nozzle,

Advanced coating effect can be achieved.

High coating efficiency

HDA-70 nozzles with excellent direct penetration and far surface arrival,

High coating efficiency can be achieved.

Seeking the most convenient use

Because it's a resin body and lightweight,

1020 liquid electrostatic spray gun handle just hold in hand, so long working hours do not feel tired.

Various adjustment and adjustment devices

As the regulator, hongda electrostatic spray gun can be easily adjusted to discharge quantity and paint spraying range.

Air cap



atomizes paint discharged form paint nozzle and creates spray pattern



Electrode



applies high voltage



Grip end

joints paint /air hose and conection cable

Gun hook

fits various gun hanger shapes and manual gun in optimum balance

Paint adjuster



adjusts paint discharge

HONGDA HAD-1020 Manual electrostatic spray gun date:

Use paint		All conductive coatings / general coatings / metal paints
Model		HDA-1020
Voltage Max		DC-60KV
Hydraulic pressure	Common	0-0.3MPa
	Max	0.6 MPa
Air pressure	Common	0.05-0.4 MPa
	Max	0.6 MPa
Air consumption		350N1/min(ANR)
Air inlet		Screw diameter PF1/4
Paint entrance		Screw diameter  PF1/4
Full length (HDA-70)		231mm
Length of connecting cable		5m 8m (Max 30m)
Weight (without cable))		490g



product application



1.Car coating:car body,car parts,larger container,plastic components

2.coating electric machinery coating:Switchboard, control panel, air conditioning machine, OA machinery,     household electrical appliances

3. building materials, furniture: office machinery, steel furniture, doors and windows, walls, building materials Machinery coating:construction machinery,grinding machinery,production machinery.

 4.others:hardware coating,painting and wooden products coating;

5.Glass bottle coating, glass perfume bottle coating, glass cosmetics bottle and glass wine bottle coating



HDA114  electrostatic controller for HDA-1020 Manual electrostatic gun

 HDA-114 controller specifications:



output adjustment	DC-20-60KV
voltage	AC24V
Maximum current	80uA
supply voltage	AC220V±10%
Dimension	260X160X350mm
application environment	temperature 0-45℃
	dampness 20-85℃
weight	4.5kgs

select the hose suitable for the application



install controller outside of the coating booth and at a place at least 1.5m away from the booth opening or entrance



Hongda HDA-1020 new built-in electrostatic spray gun, lightweight, reasonable structure, good effect, fast electrostatic coating
