HDA-100 B New Model Manual
electrostatic liquid spray paint gun
high safety feature
high voltage cable with detachable connector for easy maintenance
Teflon fluid hose which is easy to clean and maintain.
WhatsApp: +852 52657108

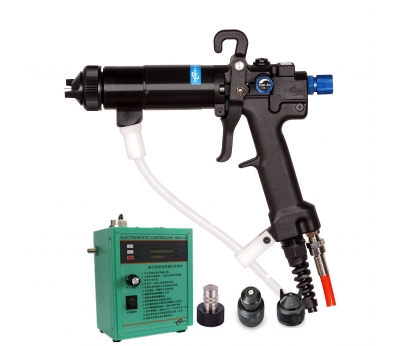

HDA-100 B Manual electrostatic liquid spray paint gun
|
Max voltage
|
DC-60 KV
|
|
hydraulic pressure
|
Max
|
0-0.3 Mpa
|
|
standard
|
0.6 Mpa
|
|
air pressure
|
Max
|
0.05-0.5 Mpa
|
|
standard
|
0.06 Mpa
|
|
air
consumption
|
350 Nl/mm
|
|
air
bore
|
screw bore PF 1/4
|
|
paint bore
|
screw bore PF 1/4
|
|
Length
|
248 mm
|
|
supply
cable (standard)
|
5 M/6 M/8 M/10 M
|
|
weight(without nozzle & cables)
|
480 g
|
Advantages:
Fits various gun
hanger shapes and hangs gun in optimum balance gun hook
1. Digital display
2. Precise oil control
3. Easy to operate
4.
move Convenient
5. environment Protect 6. High efficiency
7.save paint
8.save cost
HDA Spray HDA-100
electrostatic controller
|
Output adjustment
|
-15-60 KV
|
|
high voltage switch
|
Air flow switch
|
|
supply voltage
|
AC 110 V-220 VHZ
|
|
dimension
|
220 X 145 X 270
|
|
application environment
|
temperature 0-45℃
|
|
dampness 20-80℃
|
|
weight
|
6.5 kgs without holder
|
The high
pressure curve is set up, and the output DC high voltage is stable. After fine
atomization, the coated particles produce electrostatic surround effect under
the influence of the electrostatic field force, thus improving the coating rate
(coating efficiency);
2 、 adopt electronic switch mode, over current, automatic power
off and discharge, start buzzer alarm, high safety;
3, according to the spraying conditions, step-less
adjustment of the high voltage, suitable for all types of work and coating,
convenient voltage trimming requirements;
Optional
nozzle
Warning:
Never use a metallic brush for cleaning the
nozzle. The nozzle is an important part of the coating machine. If you damage
the nozzle using a metallic brush, uniform spraying cannot be maintained .when
cleaning the nozzle, used bamboo brush and the like. The electrode pin is
pointed and likely to stick in your finger, so handle it carefully.
Applications:
Car: car body, auto parts, resin molding parts;
Motor: distribution box, control panel, air conditioning
machine, OA machinery, household electrical appliance;
Building materials, furniture: office machinery,
steel furniture, door and window frames, walls, building materials board;
Machines: building machines, machine tools,
industrial machines;
Other: all metal products, gold-plated products,
wooden products, etc.;
Demo performance:
