    HDA-1020 Electrostatic spray gun

    Intro


    Main Features

    High safety feature
    High voltage cable with detachable connector for easy maintenance
    Teflon fluid hose which is easy to clean and maintain.
    Max voltage DC-60 KV
    HDA- 1020 manual electrostatic spray gun
    DA -1020  air electrostatic spray gun
    is used in liquid electrostatic spraying. It is aimed at: conventional oily coating solvent based coating, common (PU polyurethane paint, UV curing paint, acrylic paint, etc.) application industry: hardware, wood, sports equipment, automobile, etc.


    Description

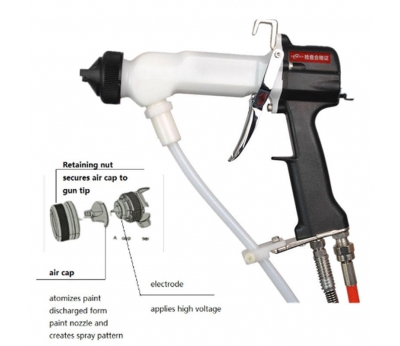

    The Details Of The HDA-1020 Electrostatic spray gun:

     electrostatic spray gun
    electrostatic spray gun





    HDA-1020 manual electrostatic spray gun is  the high-end and good spraying performance of spray gun. the electrostatic is in the gun body, then the static is more closer to the workpiece when spraying,

    that is why the spraying effect is more better than the electrostatic in the controller. and the cables are be 15 meters long. that it is good for long length and large workpieces, such as aluminium Profile,

    steel plate,trucks, containers, and high demand workpieces.

    electrostatic spray gun nozzle

    paint spray gun spare part

    Name:  HDA-70 sector nozzle

    Brand: HDA

    Original: China


    Bore: 1.2,1.5 mm

    atomization pressure: 0.05/ 0.15 Mpa

    paint discharge: 100-400 mi/min

    spraying swath: 100-400 mm

    air consumption: 180 Ni/min


    HDA-1020 electrostatic spray gun

    HAD-1020 High pressure air manual electrostatic liquid paint spray gun
    Use paint : All conductive coatings / general coatings / metal paints
    Model
    HDA-1020
    Voltage Max
    DC-60KV
    Hydraulic pressure
    Common
    0-0.3Mpa
    Max
    0.6 Mpa
    Air pressure
    Common
    0.05-0.4 Mpa
    Max
    0.6 Mpa
    Air consumption
    350N1/min(ANR)
    Length of connecting cable
    5m 8m (Max 30m)
    Weight (without cable))
    490 g

    HDA liquid electrostatic spray gun

    The Installation connection method:

    electrostatic spray gun cables
    electrostatic spray gun installation

    There are three types of nozzles to choose from, HDA-18 round nozzle,

    HDA-35 round nozzle and HDA-70 fan nozzle. it is according to the products and atomization shape to select the nozzle.

    HDA spray gun nozzle

    Electrostatic paint spray gun
