The combination of electrostatic effect and high speed coating centrifugal force producesbetter and mre uniform coating particles. these high voltage charged prarticles are attracted to well grounded workpieces, resulting in excellent surface quality and high coating transfer efficiency

aomization	centrifugal force ofturbine motor	driving form	air bearing turbine
Bell dimension	Φ20mm, Φ30mm, Φ50mm, Φ65mm	spray width	100-500mm
Max output voltage	DC-20-80KV	max output current	300ua
Max flow rate	500cc/min	Max speed	70000rpm/min ( un-load
Max air consumption	1.0Nm3/min	length	600mm reciprocation machine

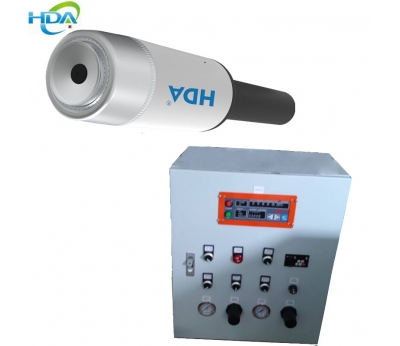

Weigh	5.5kgs	electrostatic controller	HAD-201
Installation method	Fixed, reciprocation machine ro coating robot

Roatry bell generally has three installation methods: fixed, reciprocation machine, robot, paintfrom the center to the high speed rotating bell head, bell head is charged and 80KV high voltage transmission to the paint, when the paint touches the bell head. is charged with high voltage negativ charge, because thsescharges reple each other, when the paint leaves the bell head, paint particles it's split by the charge into smaller and nore uniform particles until the surface thnsion of the coating is balanced with the charge repulsion

high voltage	DC-80KV
high voltage adjustment	15KV-80KV Unsection type
high voltage switch	Automatic & Manual
supply voltage	AC110V-240V 50/60HZ

The combination of electrostatic effect and hgh sped rotating centrifugal force producesbetter and more uniform coating particles, the high voltage charged particles are attracted  to wellground ded workpicees, resulting in excellent surface quality and high coating transfer efficiency
