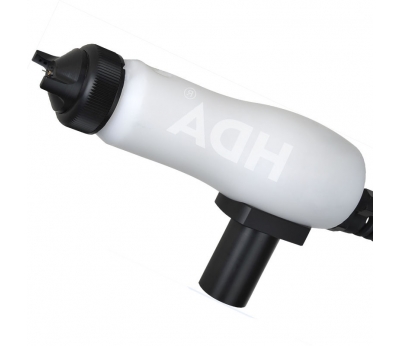

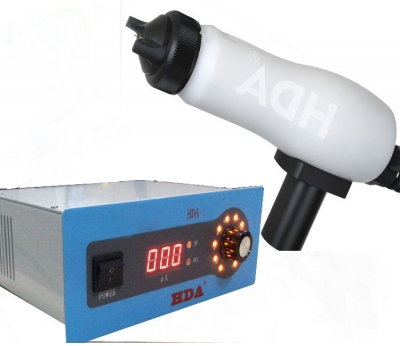

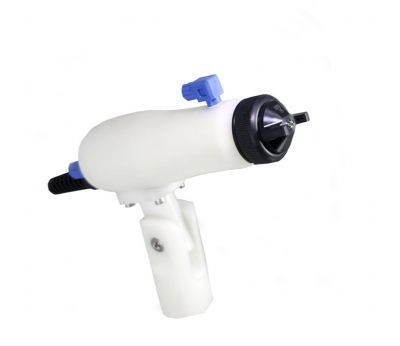

HDA-90B automatic air electrostatic spraying gun suitable for general industry has the advantages of simple structure, easy maintenance, strong penetrating force of paint fog, wide application range of coatings, excellent surface effet, and is the preferred product for large area paint spraying type which needs strong penetrating force of coatings.
Description
HDA-90B Specifications
Maximum output 80KV
Maximun output current 200ua,300ua ( external)
Maximun spray 350mm
Maximum air consumption 600NL/min
Maximun spit out quantity 600cc.min
Coating switch external valve
Installation method reciprocatin machine and coating robot
Electrostatic controller for HDA-90B
outup ajustment
DC-20-60KV
voltage
AC24V
Maximum current
80uA
supply voltage
AC220V±10%
Dimention
260X160X350mm
application environment
temperature 0-45℃
dampness 20-85℃
weight
4.5kgs
The automatic air electrostatic spraying gun suitable for general industry has the advantages of simole structure, easey maintenance, strong penetrating force of paint fog, wide aplication range of coatings, excellent surface effect, and is the preferred product for lager area paint spraying type which needs strong penetrating force of coatings.

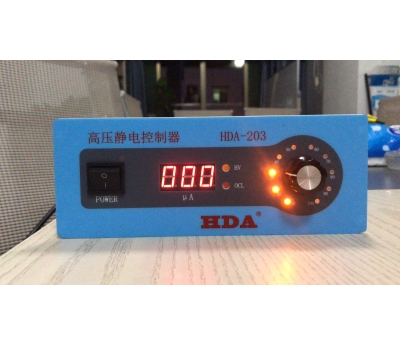

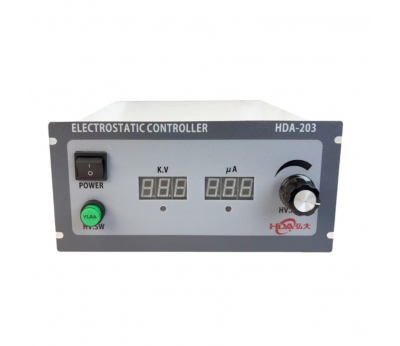

The electrostatic control depence on customer like, as following simply electrostatic controller for easy adjustment and simply for such over sea customer:
