HDA -2020 Automatic electrostatic gun is a spray coating of fine, high efficiency good durability, high safety electrostatic spray gun.
.Save paint about 20%-30%
. spraying time about30% shorter than before
.reduce spray paint
.Save costs, reduce emissions
hotline & whatsapp：86-13926859125
HDA -2020 Automatic electrostatic spray gun applications
Car, auto parts, resin moldings
mechanical and electrical,(distribution, air conditioning equipment, OA equipment, hone appliance prodcuts)
Bulding materials, furniture,( office equipment, copper sanctions, furniture, window frames)
machinery (building materials, machinery, industrial machinery, agricultural machinery)
other metal product

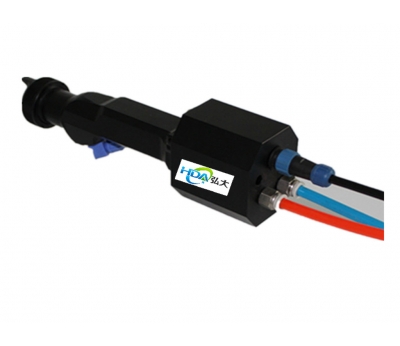

HDA -2020 Automatic electrostatic gun
|
Max voltage
|
DC-60KV
|
|
hydraulic pressure
|
Max
|
0-0.3Mpa
|
|
standard
|
0.6Mpa
|
|
air pressure
|
Max
|
0.05-0.4Mpa
|
|
standard
|
0.06Mpa
|
|
air consumption
|
350N1/mm
|
|
ari bore
|
screw bore PF 1/4
|
|
paint bore
|
screw bore PF 1/4
|
|
Length
|
231mm
|
|
supply cable (standard)
|
5M/8M/30M
|
|
weight(without nozzle & cables)
|
490g
|

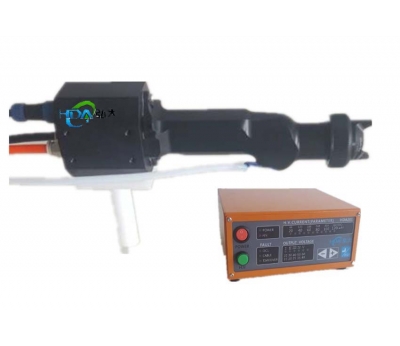

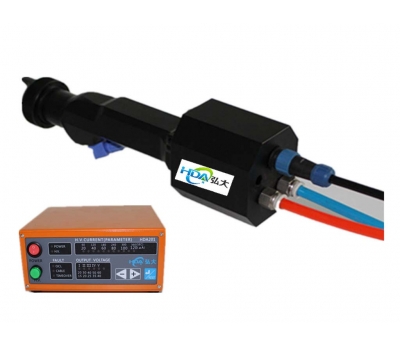

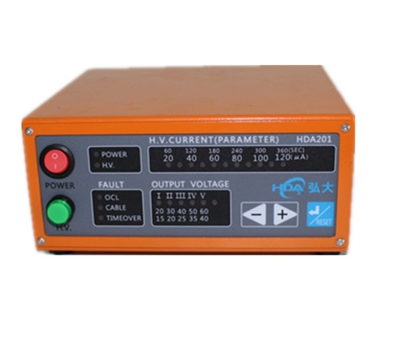

HDA114 electrostatic controller for HDA-2020 Automatic electrostatic gun
|
outup ajustment
|
DC-20-60KV
|
|
voltage
|
AC24V
|
|
Maximum current
|
80uA
|
|
supply voltage
|
AC220V±10%
|
|
Dimention
|
260X160X350mm
|
|
application environment
|
temperature 0-45℃
|
|
dampness 20-85℃
|
|
weight
|
4.5kgs
|
in case:
