1. Hight Efficiency Liquid Paint Spraying

2. High Reliability automatic surface spray

3. Air turbine atomization method

4. Good spraying performance save cost

low pressure forming air, paint mist vortex conveying, super saving paint, high speed rotating. spraying rate more than 80%, greatly reduces the overspray. reduces  VOC emissions, save costs and protects the environment.

Special surface treatment for use more durable.

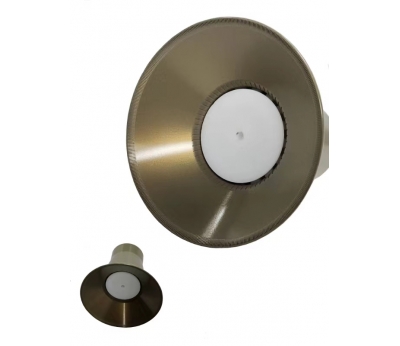

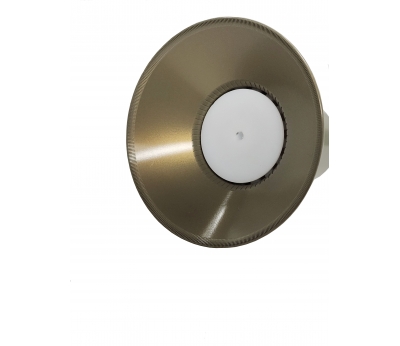

bell cup dimension: Φ20mm, Φ30mm         Atomization method：air turbine spraying

Spray width:  80-150mm  Max output voltage:  DC 20-80KV

Max air Air consumption： 0.75N3/min  Max flow: 200cc/min

Max rotating speed: 120000Rpm(unload）
