Effect of coatings on the rotary cup high speed rotating centrifugal force, by rotating the cup around the fiber from the cup filiform denticulate, centrifugal force and high charge under the action of coating particles, spray evenly distributed in space. The coating is effectively adsorbed on the workpiece with positive charge by carrying the high voltage negative charge, the coating efficiency is greatly improved, the coating film is even, and the coating film is enhanced.

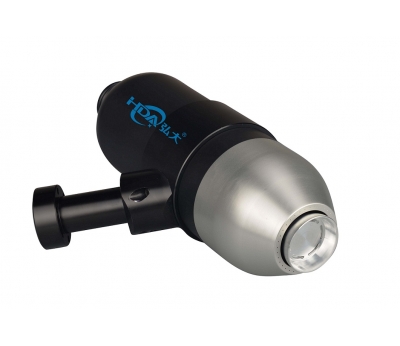

Parameters of air flotation cup for HDA-60 manipulator:
1, model: HDA-60
2, work pressure (MAX),:DC, -80KV, can be adjusted.
3 、 high voltage generator: external type
4, rotational speed (no-load): 80000rpm MAX.
5 、 drive form: air bearing motor
6, weight: 2.9KG
Air pressure:
1, turbine motor: 550ml/min - 42000rpm (400l/min)
2, air bearings: 60l/min (normal)
3, forming air: 170 - 540l/min (normal)
4, air brake: 100l/min (normal)
Characteristics of electrostatic spraying machine for air operated rotary cup for HDA-60 mechanical arm:
1. Coating pressure: 0.69MPA max.
2, paint flow: 25-600cc./min
3, high performance air turbine motors: long life design
4, cup: 30mm
5, special serrated edge design, paint atomization effect is excellent
bell
30mm, 60mm,
Max speed
80000rpm
voltage
0-80kv
specific air
consumption
20-500Nl/min
rotational air consumption
100-1000Nl/min
paint spit out
0-300cc/min
dimension
100x500mml
weight
2.9kgs
automatic rotary bell electrostatic spray paint gun controller
high voltage
DC-80KV
high voltage
adjustment
-15KV-80KV Unsection
type
high voltage
switch
Automatic &
Manual
supply voltage
AC110V-240V 50/60HZ
Dimension
330 X 240 X 240
weight
9.5kgs
1)
spinning wheel electrostatic spray gun unit speed, pressure adjustment, forming
air adjustment
2) electrostatic high voltage
switching off adjustment
3) function of paint switch gun
4) electrostatic switch and the
size of the regulating voltage
5) manual / automatic
switching function
electrostatic spray gun gear pump
AC drive motor 120W 3
phase 220V;
1) gear pump rack and insulation cabinet;
2) suction and return piping;
3) ) Taiwan Shihlin frequency controller (control paint
highlight size)
4) Characteristic：
5) high precision paint stable transportation can be
carried out quantitatively.
6) not easy to be affected by paint viscosity change.
7) according to the required thickness of the film,
the precise setting of the amount of spitting can be carried out.
8) using precision gear pump with excellent wear
resistance.
9) simple operation, convenient for on-site personnel
control.
10) suitable for waterborne coatings.
Control oven:
1)
spinning wheel electrostatic spray gun unit speed, pressure adjustment, forming
air adjustment
1）
2) electrostatic high voltage
switching off adjustment
2）
3) function of paint switch gun
3）
4) electrostatic switch and the
size of the regulating voltage
