How to choose a right liquid electrostatic spray gun?

How to choose a right liquid electrostatic spray gun?

The following is a practical guide for selecting liquid electrostatic spray guns, combined with core parameters, application scenarios, and brand characteristics:

1、 Clearly define the spraying requirements

Scale of homework

Small batch/sampling: Choose hand in hand dynamic models (weight ≤ 500g), support quick color change and cleaning

Production line: prioritize automatic spray guns such as Hongda HDA-90 auto electrostatic spray gun, or rotating bell spray gun such as HDA-605 electrostatic rotating bell spray gun ),

Compatible with robot integration Coating characteristics

Viscosity: For high viscosity coatings (such as epoxy paint), a large-diameter nozzle (≥ 1.8mm) should be selected

Water based paint requires a dedicated electrostatic model

Conductivity: Non metallic workpieces (plastic, wood) need to undergo conductivity treatment in advance

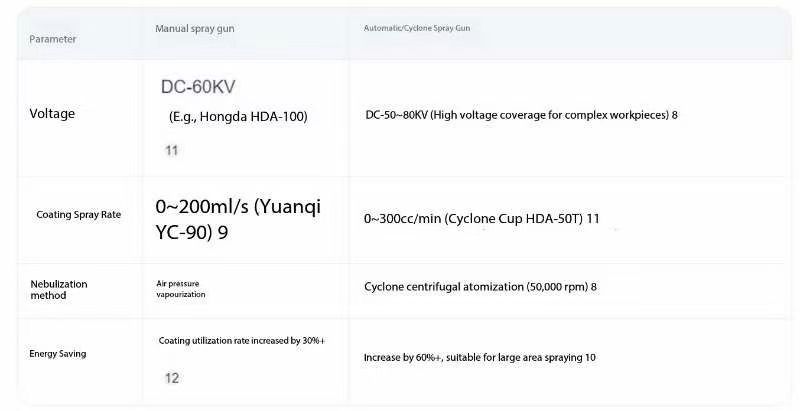

Comparison of core parameters

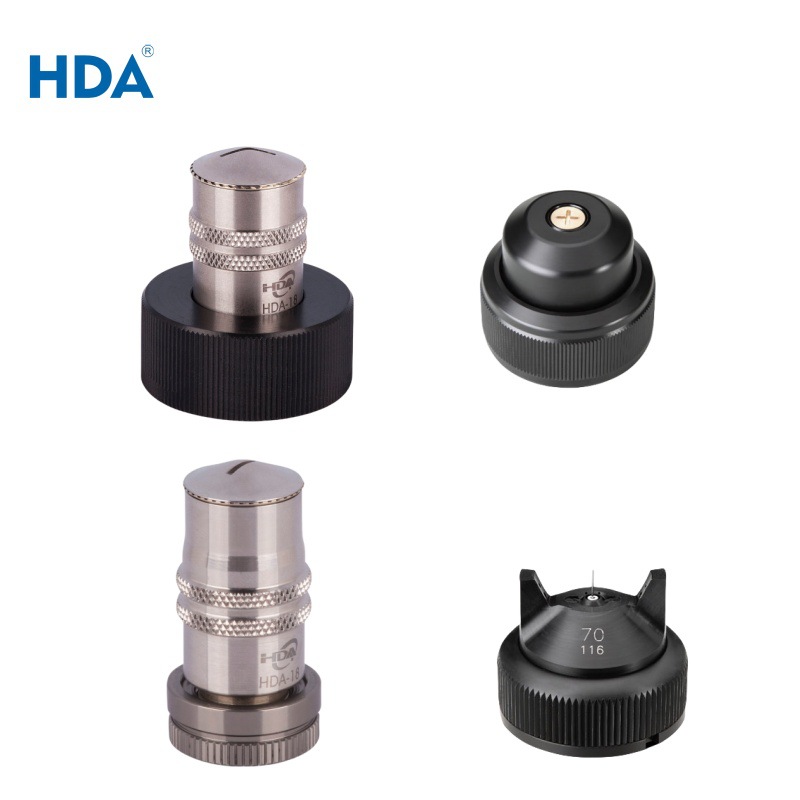

Nozzle selection:

round nozzle: wraps small workpieces (screws, beads)

Fan nozzle: fast coverage of flat surfaces (door panels, metal sheets)

Maintenance cost:

Choose ceramic nozzle+tungsten steel valve core (Hongda HDA-100), with a lifespan three times longer than ordinary parts

Avoid soaking the gun body in solvents and maintain it with a soft bristled brush and specialized cleaning agent.

In recent years, many foreign agents have also developed and received good reviews. HDA electrostatic spray gun is the best cost-effective choice for both domestic and foreign users. For the service aspect, it is also very good. Every year, technicians are arranged to provide on-site support for local exhibitions organized by agents. HDA factories in countries with agents do not directly hold any exhibitions, allowing opportunities to be given to local agents.

What are the models of spray guns available

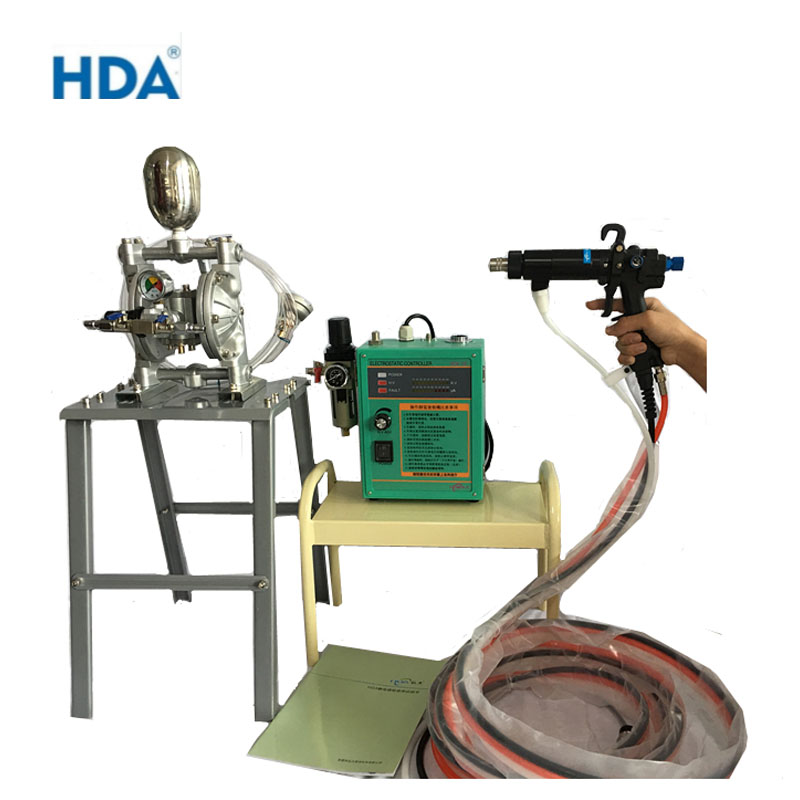

Manual liquid electrostatic spray gun

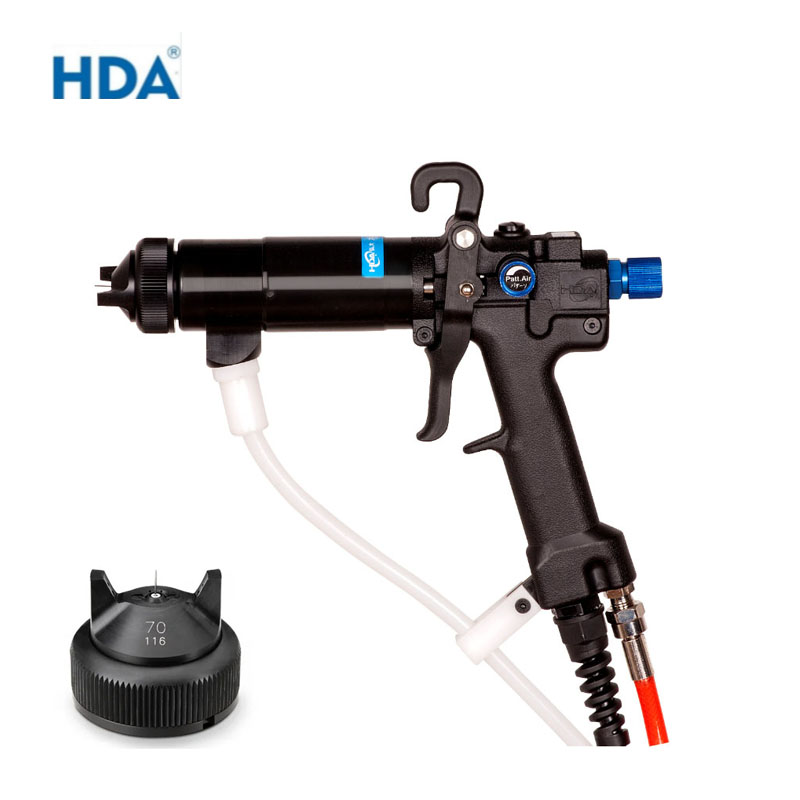

HDA-100

Voltage: DC-60KV

Coating pressure: 0~0.3Mpa (maximum support 0.6Mpa)

Weight: 480g, cable length optional 3m/5m/8m

Applicable fields: Spraying of small and medium-sized workpieces such as hardware, furniture, and machinery

Advantages: Lightweight design, precision ceramic needles and tungsten steel valve cores enhance durability

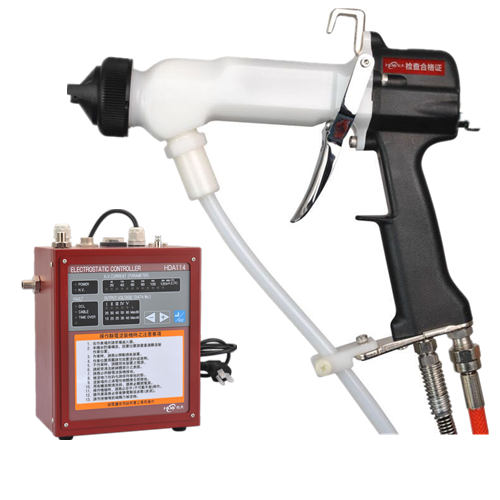

HDA-1020 (with built-in high voltage)

Maximum voltage: DC-60KV

Spray rate of paint: 300ml/min

Air consumption: 350Nl/min

Features: Reduce VOC emissions by over 30%, optimize corner coverage, and adapt to hardware spraying

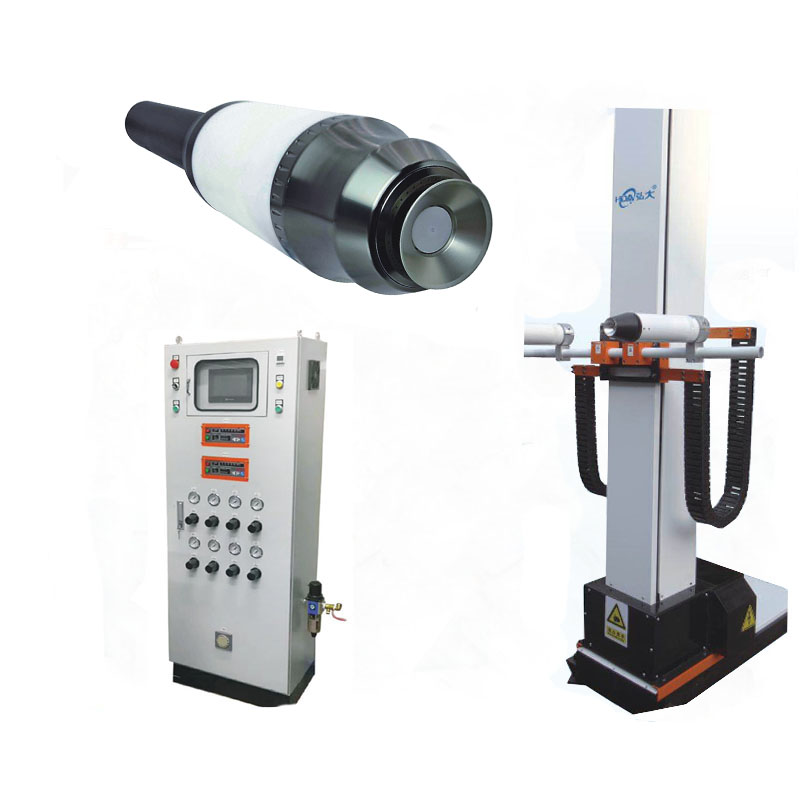

And high-speed liquid electrostatic rotating bell spray guns and system such as HDA-605, HDA-603 etc:

The HDA-605 is upgraded from HDA-60 electrostatic rotating bell spray gun, and the HDA-605 high-speed electrostatic rotating bell has outstanding performance,

excellent surface spraying, and good performance
