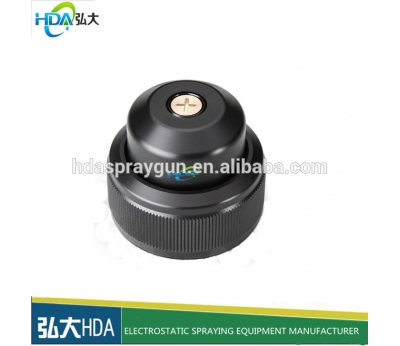

HDA -35 electrostatic liquid paint spray gun round nozzle

High performance, high atomization, high coating,
Apply to electrostatic liquid transparent paint, color paint, metal paint and other paint spraying;

HDA-35 Round Nozzle for Manual electrostatic spray gun

HDA-35 metal round nozzle, electrostatic injection nozzle
High performance, high atomization, high coating,
Apply to electrostatic liquid transparent paint, color paint, metal paint and other paint spraying;

Bore: 12mm

Atomization pressure: 0.08/-0.15Mpa

Paint discharge: 50-300mi/min

Spraying swath: 160mm

Air consumption: 100NI/min

Electrostatic spray nozzle maintenance:
1, at the end of each job should be carefully cleaned.
2, cleaning nozzle Dusseldorf, can not use metal wire wear stamp should be soaked in solvent, use compressed air blowing, do not use metal cleaning brush.
3, nozzle operation process should be often cleaned, attached to the nozzle part of the coating will make particles poor, and affect static electricity produce effect.

HDA-35 Round Nozzle for Manual electrostatic spray gun

Applicable to hardware, lighting, furniture, gold spraying, oil tank, frame and other metal products;
Applicable coatings: two kinds of paint, such as cyanuric acid, benzene, methylamine, acrylic resin, polyurethane, metal luster paint, water paint, etc.;
High performance, high atomization, high coating;
Apply to electrostatic liquid transparent paint, color paint, metal paint and other paint spraying;
