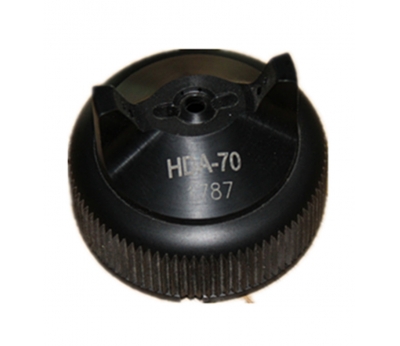

HDA-70 Electrostatic spray gun sectro nozzle

1.2/1.5mm

atomization pressure: 0.05-0.5 Mpa

paint out: 100-400 mm

air consumption: 180 NI/min

Air cap

a part attached to the tip of the coating machine having a function of atomizing and creating pattern by force of air

select an air cap form the separate catalog according to its usage

installation of air cap

fix the air cap to the nozzle by hand

at this time, be careful so that the electrode pin will not be bent due to the air cap

also tilt the gun tip down ward so that thinner or solvent will not enter the gun

attach the retaining nut assembly to the outside of the air cap

tighten the retaining nut assembly tightly, and the adjust the angle direction of the air cap to the direction of pattern creation.

tighten the retaining nut assembly more strongly until the air cap is fixed
