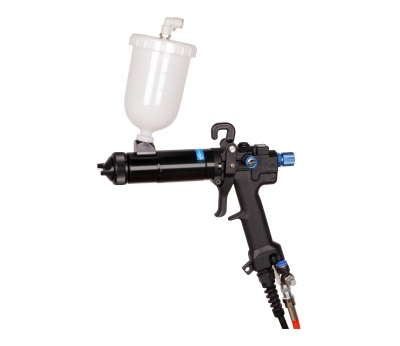

HONGDA SPRAY DHA-100 laboratory electrostatic spray gun
|
Max voltage
|
DC-60KV
|
|
hydraulic pressure
|
Max
|
0-0.3Mpa
|
|
standard
|
0.6Mpa
|
|
air pressure
|
Max
|
0.05-0.5Mpa
|
|
standard
|
0.06Mpa
|
|
air consumption
|
350Nl/mm
|
|
ari bore
|
screw bore PF 1/4
|
|
paint bore
|
screw bore PF 1/4
|
|
Length
|
248mm
|
|
supply cable (standard)
|
5M/6M/8M/10M
|
|
weight(without nozzle & cables)
|
480g
|
HDA-100 electrostatic controller
|
Output adjustment
|
-15-60KV
|
|
high voltage switch
|
Air flow switch
|
|
supply voltage
|
AC110V-220VHZ
|
|
dimension
|
220X145X270
|
|
application environment
|
temperature 0-45℃
|
|
dampness 20-80℃
|
|
weight
|
6.5kgs without holder
|
The high pressure curve is set up, and the output DC high voltage is stable. After fine atomization, the coated particles produce electrostatic surround effect under the influence of the electrostatic field force, thus improving the coating rate (coating efficiency);
2 、 adopt electronic switch mode, over current, automatic power off and discharge, start buzzer alarm, high safety;
3, according to the spraying conditions, stepless adjustment of the high voltage, suitable for all types of work and coating, convenient voltage trimming requirements;
