    What happened for enterprises in 2022?

    2022.09.05


    After a period of great disruption and rapid modernization, 2022 will be a year during which enterprise companies take a breath and a closer. but what will be happen at the automation and coating industry during COVID-19 years.

    automatic electrostatic rotating bell spray | hdaspraygun

    However, with the development of China's economy and the development of foreign coating technology, China's coating technology has developed rapidly through technology introduction and exchange with foreign technology. In terms of coating automation production, the promotion and application of electrostatic spraying and electrophoretic painting technology, the development and promotion of liquid spraying technology, especially the rapid development of automobile, aerospace and national defense in China in the past two years.


    In particular, it relates to a spraying device for spare parts for the production of new energy vehicles, which can automatically spray equipment, save manpower and improve work efficiency;


    HONGDA SPRAYING ELECTROMECHANICAL specialized in

    manufacturing electrostatic spray guns. electrostatic spray gun, liquid electrostatic spray gun ,automatic electrostatic spray gun, manual electrostatic spray gun, paint spray gun, water spray gun, liquid coating system,  electrostatic spray coating machine

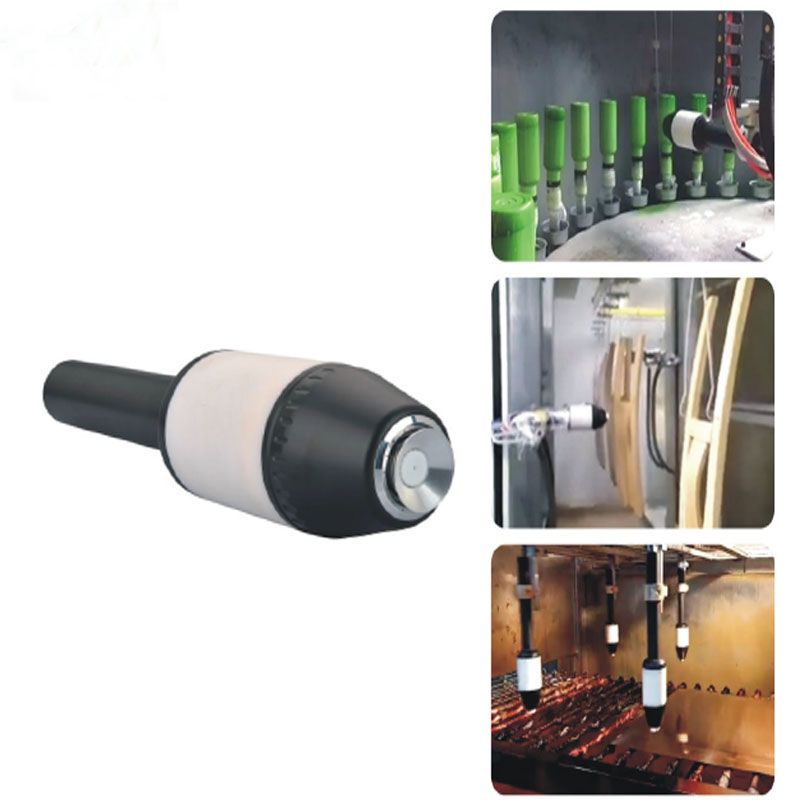

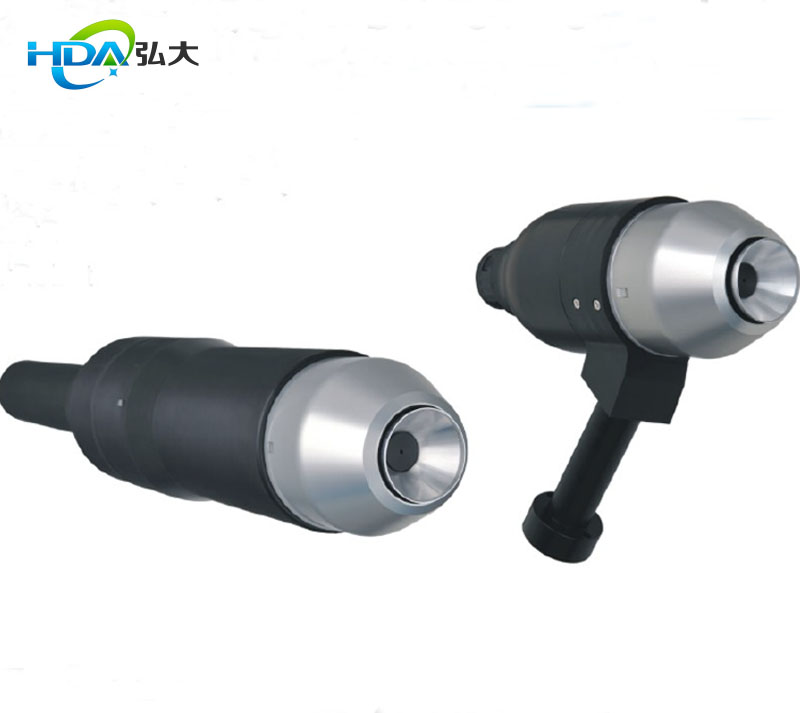

    HDA-60 Air turbine automatic rotating bell electrostatic spray system.

    High speed rotating bell automatic coating | hdaspraygun

    The combination of electrostatic effect and high speed coating centrifugal force produces better and more uniform coating particles. these high voltage charged prarticles are attracted to well grounded work-pieces, resulting in excellent surface quality and high coating transfer efficiency


    aomization

    centrifugal force of turbine motor

    driving form

    air bearing turbine

    Bell dimension

    Φ20mm, Φ30mm, Φ50mm, Φ65mm

    spray width

    100-500mm

    Max output voltage

    DC-20-80KV

    max output current

    300ua

    Max flow rate

    500cc/min

    Max speed

    80000rpm/min ( un-load

    Max air consumption

    1.0Nm3/min

    length

    600mm reciprocation machine

    Weigh

    5.5kgs

    electrostatic controller

    HDA-203

    Installation method

    Fixed, reciprocation machine ro coating robot

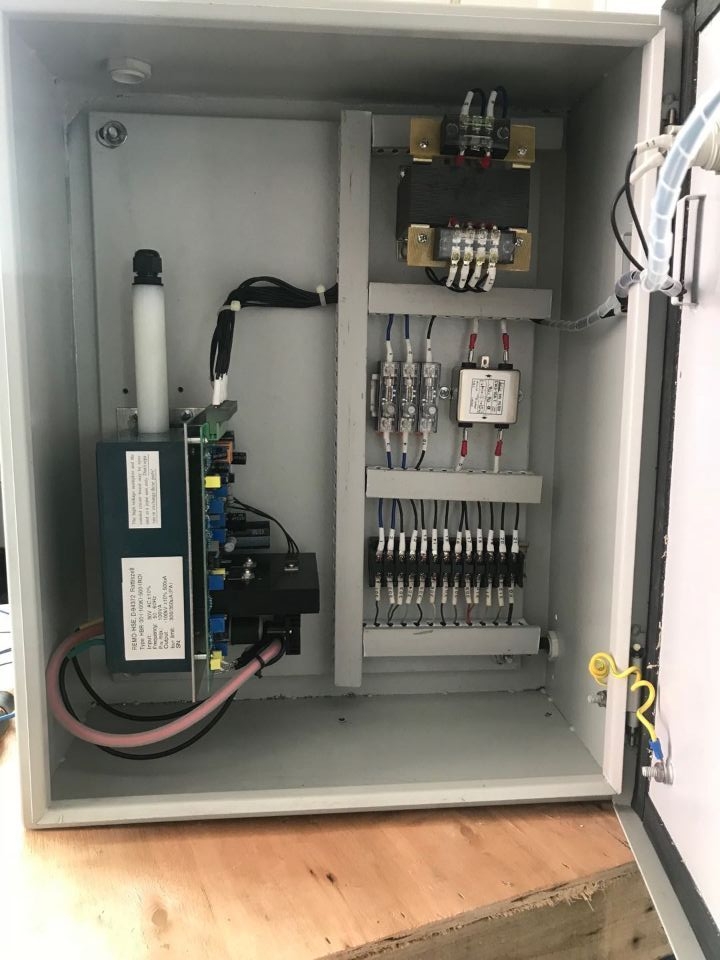

    The HDA-203 high voltage electrostatic controller effect and high speed rotating centrifugal force produces better and more uniform coating particles, the high voltage charged particles are attracted to well ground the workpicees, resulting in excellent surface quality and high coating transfer efficiency

    automatic coating electric control cabinet | hdaspraygun

    high voltage

    DC-80KV

    high voltage adjustment

    15KV-80KV Unsection type

    high voltage switch

    Automatic & Manual

    supply voltage

    AC110V-240V 50/60HZ
