Electrostatic Spray Gun: Why Does Charged Paint Stick Better, Waste Less, and Look Smoother?

If two spray guns lay down the same paint, why does the electrostatic one deliver a smoother finish, fewer defects, and noticeably less overspray—sometimes with 30–60% paint savings? The answer sits at the intersection of physics, process control, and smart equipment design. Below is a practical deep-dive into how electrostatic spray guns work, what they’re best at, how to select and tune them, and how to keep them safe and productive on the shop floor.

1) What It Is—and What It Isn’t

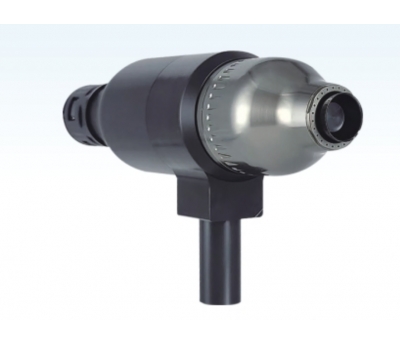

An electrostatic spray gun is a coating applicator that charges paint particles as they leave the gun. The workpiece is grounded, so the charged droplets are attracted by Coulomb forces and “wrap” around edges and back surfaces. The result is higher transfer efficiency, more uniform film build, and a cleaner booth.

Electrostatic is not a magic wand. It won’t hide poor surface prep, compensate for wildly wrong viscosity, or erase bad airflow in a booth. Think of it as a force multiplier: when the basics are right, electrostatics make them better.

Common formats you’ll encounter:

Air spray electrostatic (conventional or HVLP atomization): Adds high voltage charging to familiar air caps and fluid tips. Great for Class-A finishes.

Air-assisted airless (AAA) electrostatic: Uses fluid pressure for primary atomization, air for pattern shaping, plus charging. Balances speed, control, and finish quality.

Airless electrostatic: High flow and penetration for heavy-build industrial coats.

Electrostatic powder guns: Charge polymer powder instead of liquid paint; standard in appliance, metal furniture, and machinery finishing.

2) The Physics, Simplified

At the heart of an electrostatic gun is a compact power supply that raises the electrode potential (often 40–100 kV) while limiting current to microamp levels for safety. The charging mechanism is usually corona charging: the electrode creates an ion cloud; droplets or powder particles pick up charge as they pass, then migrate toward the grounded part.

Key effects you can see on the line:

Wraparound: Charged coating doesn’t just fly straight; electric field lines curve around to the rear and side faces, reducing “shadowing” behind tubes, flanges, and edges.

Edge preference: Electric fields concentrate on sharp edges, so you’ll often see heavier build there—good for corrosion resistance but watch for runs if viscosity is low.

Faraday cage effect: Deep recesses can shield the field; droplets may refuse to enter tight corners unless voltage, flow, and air are adjusted.

3) What You Gain: The Real-World Benefits

Transfer Efficiency: Fewer particles miss the target. Expect meaningful savings in paint consumption and booth maintenance.

Finish Quality: More uniform film build, fewer holidays, smoother edges, and improved DOI (distinctness of image) for automotive-grade clears and topcoats.

Cleaner Booth & Filters: Less overspray means longer filter life and less housekeeping.

Throughput Opportunities: With better deposition, operators can often move faster without sacrificing coverage.

Environmental & Cost Benefits: Reduced VOC per finished part (for solvent systems), smaller waste streams, and a friendlier TCO.

4) Where It Shines—and Where It Struggles

Shines in:

Automotive body and components (primers, base, clear—robotic or manual)

Appliances and metal furniture

Agricultural and construction equipment

General industrial metalwork

Powder coating lines (virtually the standard)

Challenging in:

Deep cavities and tight recesses (Faraday effect). You’ll need tuning: lower voltage, different tip, pulsed spray, or pre-coat strategies.

Highly conductive liquid coatings (water-borne paints). Still feasible, but you need isolation kits, resistivity control, and careful grounding plans.

Non-conductive substrates (plastics, wood). Use conductive primers, pretreatments, or embedded grounding strategies to create a return path.

5) Liquid Paint vs. Powder: Same Principle, Different Practice

Liquid electrostatic guns charge droplets. Solvent-borne paints are naturally resistive and easy to charge. Water-borne coatings work too, but because water conducts, you’ll generally use insulated paint supplies, resistivity control (coalescents, additives), and stricter grounding rules.

Powder electrostatic guns charge dry particles. The field pulls powder into nooks the airstream alone wouldn’t reach. After application, heat melts and cures the powder into a continuous film.

6) Anatomy of a Modern Electrostatic Gun

High-Voltage (HV) Module: Converts low-voltage input to tens of kilovolts, with built-in current limiting. Some guns offer on-gun voltage control or pulsing for recess penetration.

Electrode / Charging Needle: Positioned near the spray plume. Cleanliness and geometry affect charge transfer and pattern stability.

Atomization System: Air cap (air spray/HVLP), fluid pressure (airless), or hybrid (AAA). The air cap defines droplet size and fan shape.

Grounding Circuit: The workpiece, hangers, hooks, and conveyor must be well grounded. Poor ground is the number-one electrostatic killer.

Controls & Interlocks: Trigger enable, HV enable, fault monitoring, and safety shutdowns prevent unsafe operation.

Hoses & Paint Delivery: For water-borne, the supply path may be isolated; for solvent-borne, standard fluid sets are common as long as materials are compatible.

7) Setting Up for Success: Process Tuning

a) Voltage & Current:

Start in a moderate range (e.g., 50–70 kV) and watch the ammeter. If current spikes, you’re too close or the part geometry is concentrating the field. If voltage is high but current is near zero, suspect poor grounding or high paint conductivity issues.

b) Gun-to-Part Distance:

Typically 6–12 inches for liquids. Closer increases field strength but also risks arcing; farther reduces charging and efficiency. Keep a consistent travel path.

c) Air, Fluid, and Pattern:

Match tip size and cap to the viscosity and flow you need. Excess atomizing air creates fine, floaty droplets that ignore field lines and become overspray. Too little air makes heavy droplets that orange-peel or run.

d) Paint Resistivity (Liquids):

Most solvent systems sit in a friendly window by default. For water-borne, measure resistivity and adjust with approved co-solvents or additives under the coating supplier’s guidance. If the mix is too conductive, charging collapses; too resistive, atomization and leveling suffer.

e) Line Grounding:

Scrape hooks, bake off powder, wire-brush contact points. Verify less than 1 MΩ from part to earth ground (your spec may be stricter). Re-check any time throughput drops or the wraparound “disappears.”

f) Beating the Faraday Cage:

Lower voltage, reduce flow, angle the gun, or switch to pulsed HV. Some shops apply a light “pre-wet” pass with lower voltage, then a normal pass for body coverage.

8) Safety: High Voltage, Flammable Atmospheres, Real People

Electrostatic systems are designed to be safe when used correctly, but you’re mixing high voltage with flammable solvents and compressed air—respect the rules.

Interlocks & Classification: Use equipment rated for the hazard zone. Keep HV interlocks functional—never bypass them.

Operator PPE & Training: Grounded footwear, gloves appropriate for the chemistry, eye and respiratory protection, antistatic garments where required.

Ground Everything: Part, hangers, carts, booth hardware, and even operators (via footwear/floors) must be in the ground path.

Distance & Nozzle Hygiene: Maintain the recommended standoff distance; a dirty electrode encourages corona wander and possible arcing.

No “Hot-Swap” in Hazardous Areas: Power down before swapping tips, caps, or needles.

Ventilation: Maintain booth airflow within spec so vapor concentration stays below alarm thresholds.

If you spray disinfectants or other chemicals around people, validate toxicity, droplet size, and exposure limits; never rely on “it’s charged, so it’s fine.”

9) Quality: Getting the Finish You Promised

Film Build Uniformity: Use wet film combs or magnetic dry-film gauges. Expect higher edge build; compensate with travel speed and overlap.

Appearance Metrics: Monitor orange peel, sag, craters, and DOI. Electrostatics help, but viscosity, solvent balance, and flash times still matter.

Rework Minimization: Better wrap reduces light spots and “holidays,” but watch for Faraday shadows. Adjust HV and angle for recesses.

Color Change & Cleanliness: Electrostatic systems magnify small bits of contamination. Strain coatings, maintain filters, and flush lines thoroughly.

10) Choosing the Right Electrostatic Gun

Start with three questions:

What coating and substrate? Solvent vs. water-borne, metal vs. plastic/wood. This dictates isolation needs and grounding strategy.

What finish and throughput? Class-A vs. heavy-build protective; desired line speed; operator vs. robot.

What booth and utilities exist? Air capacity and dryness, electrical classification, grounding infrastructure, and color-change requirements.

Selection pointers:

For premium appearance at moderate flow: Air spray or HVLP electrostatic with fine cap sets.

For speed and control on metalwork: Air-assisted airless electrostatic hits a sweet spot.

For high-build primers or structural steel: Airless electrostatic for coverage and penetration.

For ultimate material savings on metal: Powder electrostatic where a powder line is feasible.

Look for on-gun voltage control, readable kV/µA feedback, tip/cap availability, solvent compatibility, and serviceability (electrode change, seals, and cables).

11) Cost and Payback: The Business Side

Paint Savings: Transfer efficiency gains often cover the premium in months, not years—especially on high-usage lines.

Labor & Throughput: Better wrap means fewer passes, less masking, and less rework.

Booth Maintenance: Filters last longer; floors and walls stay cleaner.

Compliance & Waste: Less overspray means fewer VOCs to capture and less waste to dispose.

Build a simple model: baseline paint consumption × expected efficiency gain – electricity/maintenance deltas. Include reduced booth downtime and rework to see the real ROI.

12) Maintenance: Keep the Charge, Keep the Quality

Daily: Wipe the electrode and shroud; check for dried paint on the cap; verify ground continuity; do a quick spray pattern check.

Weekly: Inspect cables and connectors; verify kV/µA readings against a known setup; clear air passages.

Monthly / Per Schedule: Calibrate sensors if applicable; inspect isolation hardware (for water-borne); measure booth ground resistance; refurbish hooks.

When Finish Drifts: Confirm viscosity, tip wear, air temperature/humidity, and paint resistivity before chasing electrical ghosts.

A well-kept electrostatic gun is predictable. A dirty one is mysterious.

13) Troubleshooting: Fast Clues, Faster Fixes

Poor Wrap / Efficiency Down: Check part ground, hook cleanliness, paint resistivity (liquids), and kV actually reaching the electrode.

Orange Peel or Dry Spray: Too much atomizing air or too far from part; reduce air or move closer within safe limits.

Sags / Runs: Viscosity too low or flow too high; reduce flow, increase flash, or change tip.

Arcing / Snapping: Gun too close, electrode dirty, or geometry concentrating the field. Lower kV, clean, and adjust angle.

Recesses Not Coating: Faraday cage—lower kV, reduce flow, alter approach angle, or add a low-kV pre-wet pass.

Document your “golden settings” for each color/coating and train operators to return to known-good baselines quickly.

14) Integration with Automation

Electrostatic guns pair naturally with robots and reciprocators. Closed-loop control (distance sensing, speed profiling, dynamic kV setpoints) keeps the electric field in its sweet spot. For mixed models on one line, store recipes—tip, cap, kV, flow, paths—and swap automatically with color changes.

15) Beyond Paint: Other Uses with Caution

Electrostatic principles also appear in disinfection sprayers, agricultural foliar applications, and adhesive films. The physics is the same, but the stakes differ: validate chemistry, droplet size, and exposure; check materials compatibility; and follow health and safety guidance strictly.

16) A Quick Field Checklist (Pin It Near the Booth)

Part grounded? Hooks clean? <1 MΩ to earth?

kV set where it should be, µA in normal range?

Gun distance and angle consistent?

Correct tip/cap for viscosity and flow?

Air dry and stable; atomizing air not excessive?

For water-borne: isolation intact, resistivity in spec?

Recess plan: pulsed/low-kV pass if needed.

Electrode and cap clean; no paint whiskers.

17) Closing Thought

Electrostatic spray guns don’t just make paint fly—they make paint behave. By aligning the forces in the booth with the finish you want on the part, they convert skill and setup discipline into tangible quality and cost advantages. Get the grounding right, tune the voltage to the job, respect safety, and maintain the gear. When you do, the payback shows up on the very next rack you roll into the oven.
