Electrostatic controller operation manual

The instructions contain important warnings and precautions.

Please read carefully before using this product
.Please keep this instruction carefully before the product is scrapped.If it is lost or defaced,

please ask the distributor or the company.

Thank you for your purchase of the control device for electrostatic painting of our company.


In order to be able to use this product for a long time and ensure the best use
conditions, you must make sure that you are able to use it.
Read the instructions carefully before making use of them, in particular, fully
understand the items stipulated in the construction.
Warnings, prohibitions and precautions should be used according to correct
operation methods.

The machine described in this specification is used for spraying operation.
Methods of use of this productAnd the scope of use, except for those who have
been trained and understood the mechanical operation method, please.


Do not use this product without authorization.
If there is something unclear about the instruction manual, please contact the
consultant. Please explain the "machine" when you are in contactType "and"
manufacturing number ".

Safety precautions

Please be sure to understand this instruction manual correctly and observe its usage.

If you fail to comply with this instruction, you may cause personal injury and damage.

The safety measures shown in this item are only the minimum required, which does not mean that there is no
need for any other measures. At the same time, we must abide by the law

Matters specified in the law and regulations and regulations in various enterprises and
institutions

.Please take the following safety precautions as the minimum basic safety precautions for using this product.

Risk of operating errors

《Basic security precautions》

Please check the power supply carefully before use. The power supply which is inconsistent with the setting value may cause malfunction or fire.

The control device uses high voltage, please make sure it is grounded.

If ungrounded, it may cause failure, electric shock, injury, fire and so on.

The earthing terminals must be earthing earthing (class a grounding).

Please tighten the screws on the terminal block and install the terminals properly.

Do not change the wiring in the electricity.

The product does not have explosion-proof structure. It can not be used in the explosion-proof area.

Although the control device has reached the protection level IP43, do not pour water into it.

In addition, do not use it outside.

Please avoid using in high temperature, high humidity and large vibration environment,
otherwise it will cause failure.

When the fault occurs, please stop running at once, cut off the power supply,
confirm the grounding of the charging terminal after the discharge is confirmed,
and make it short circuited. ProtectorAnd when the fuse is started, do not turn on the power again.

Do not run directly under the open box door. There are charging parts and high temperature parts
in the box, so do not touch their parts.Otherwise, it may lead to burns, injuries and electric shock.
When the door is open, the door will be detached from the box at the hinge. So please do not lift the
equipment directly under the condition that the door of the box

outline

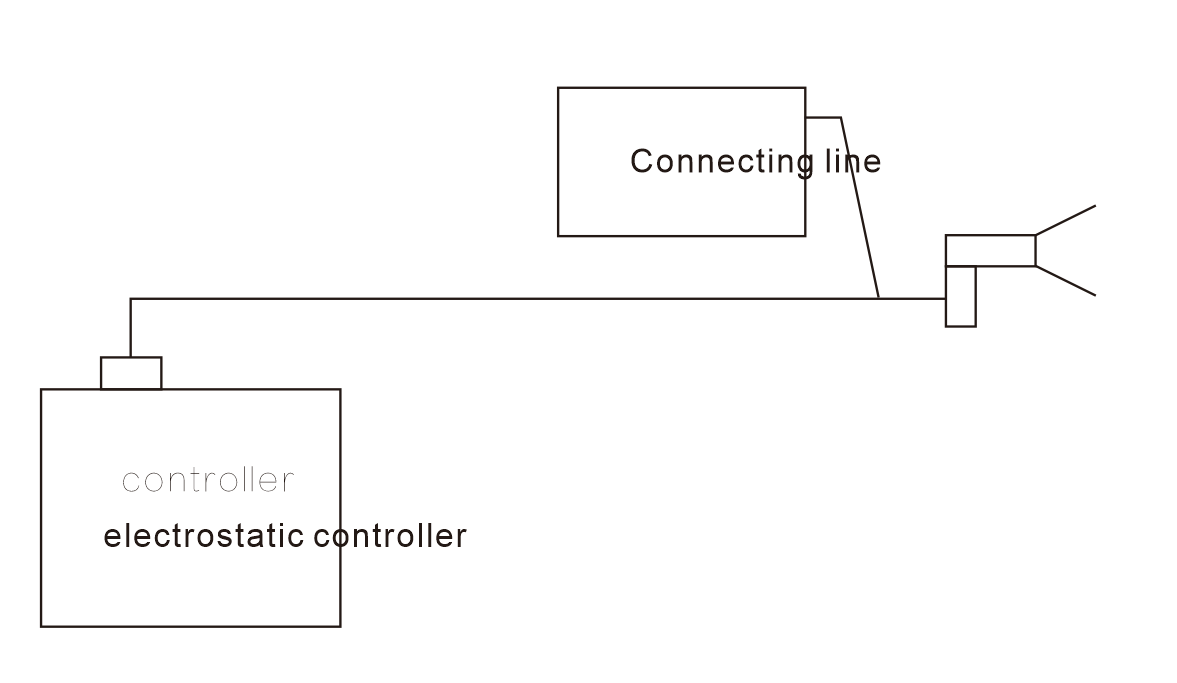

The device provides a high frequency power supply for a handheld electrostatic spray gun with a built-in high
voltage generator with a voltage of Ac24V, and carries out a high voltage charge.
A controlled control device.

The number of controlled guns is 1, and the running condition of the device and the working condition of the
spray gun are displayed in the front panel.

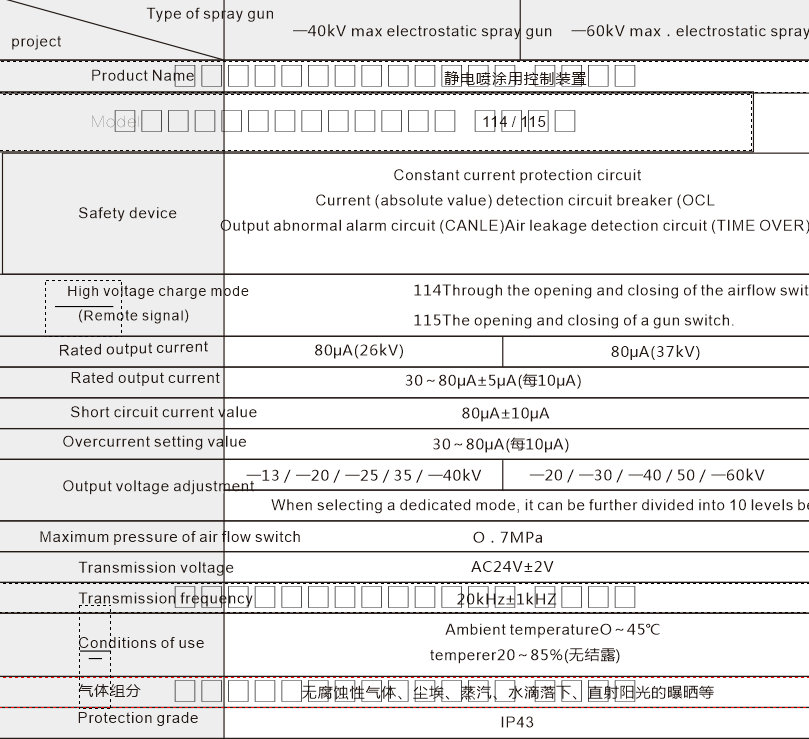

HDA-114 electrostatic controller specification

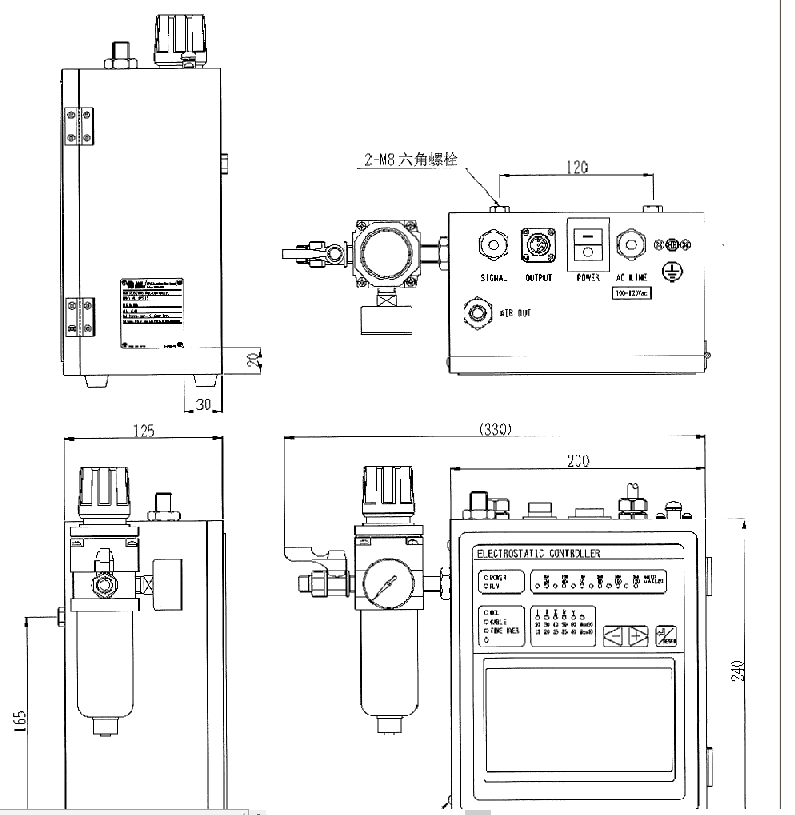

HDA-114 electrostatic controller Shape size diagram

Various settings

Method of abnormal display and reset

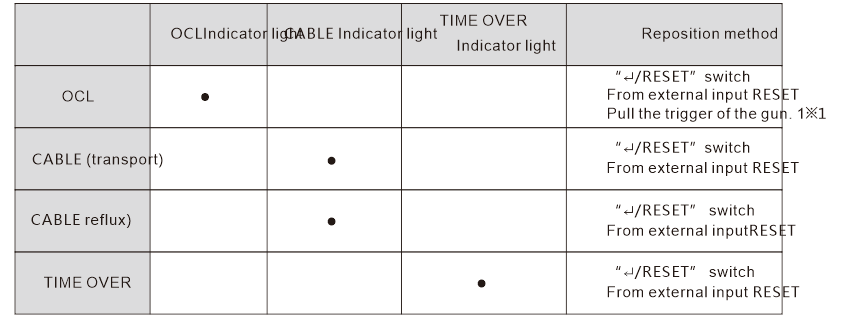

Abnormal display

The method of alarm content and reset when abnormal occurs is as follows。

When abnormal happens, the indicator lights flicker and the alarm buzzer rings.

The abnormal output of 1 DATA No. 'V' is set at 2 and 3.。

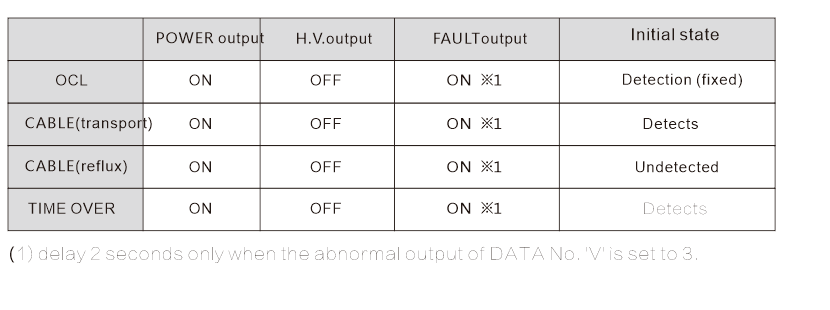

External output of 7.2.2 exceptions

The changes in external output when an exception occurs are as follows.

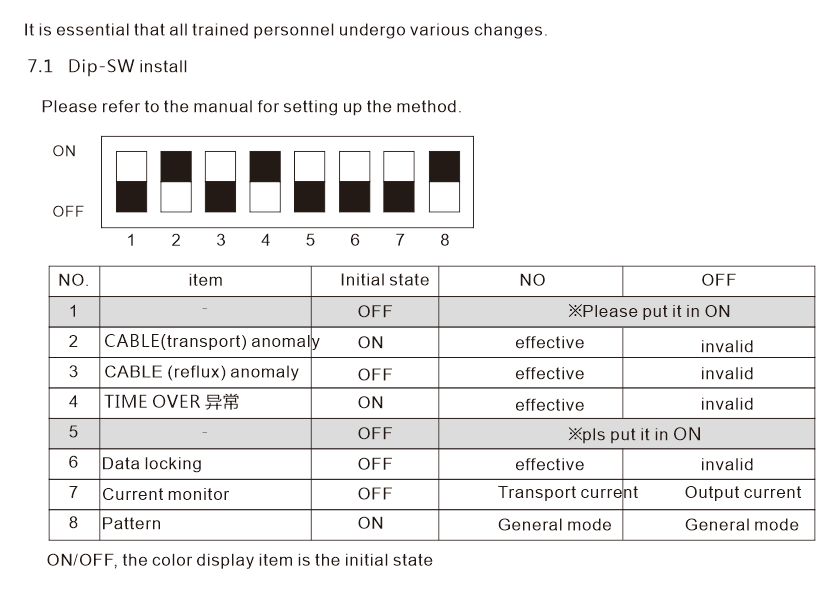

It is possible to detect anomalies by means of Dip SW2 to 4 on the CPU circuit board.

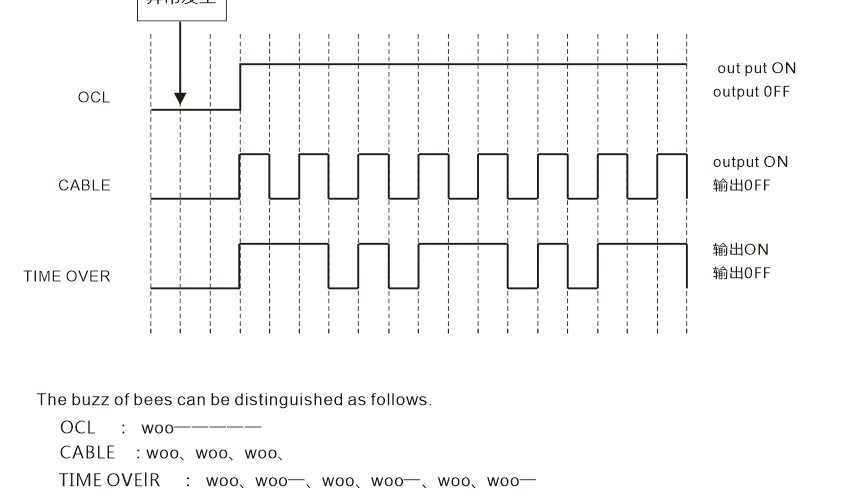

exception (FAULT) output

The abnormal output of DATA No. 'V' is set to 3, and each exception performs different
abnormal output. BPSll5 built-in buzzer and abnormalityAt the same time, the output
can be used to distinguish the types of anomalies according to the type of buzzer.
When the setting value is 1 or 2, the abnormal output is continuously exported to all the anomalies.
It will not be delayed for 2 seconds when the exception occurs.The abnormal output of
each anomaly is as follows.When an exception occurs, the highest priority item will be
output according to the abnormal precedence. The exception precedence is
1.CABLE 2.TlME OVER3.OCL.

Operation method in general mode

When Dip-SW8 (referenced to 6.3 Dip SW settings) is ON,
the general mode is activated.The factory is set as a general mode

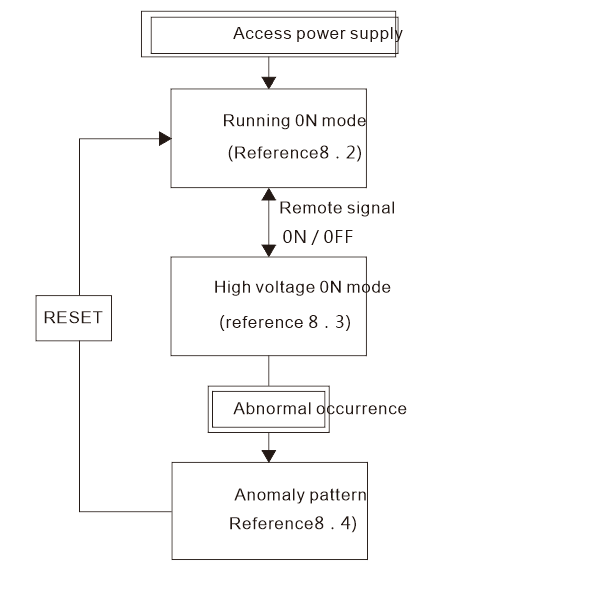

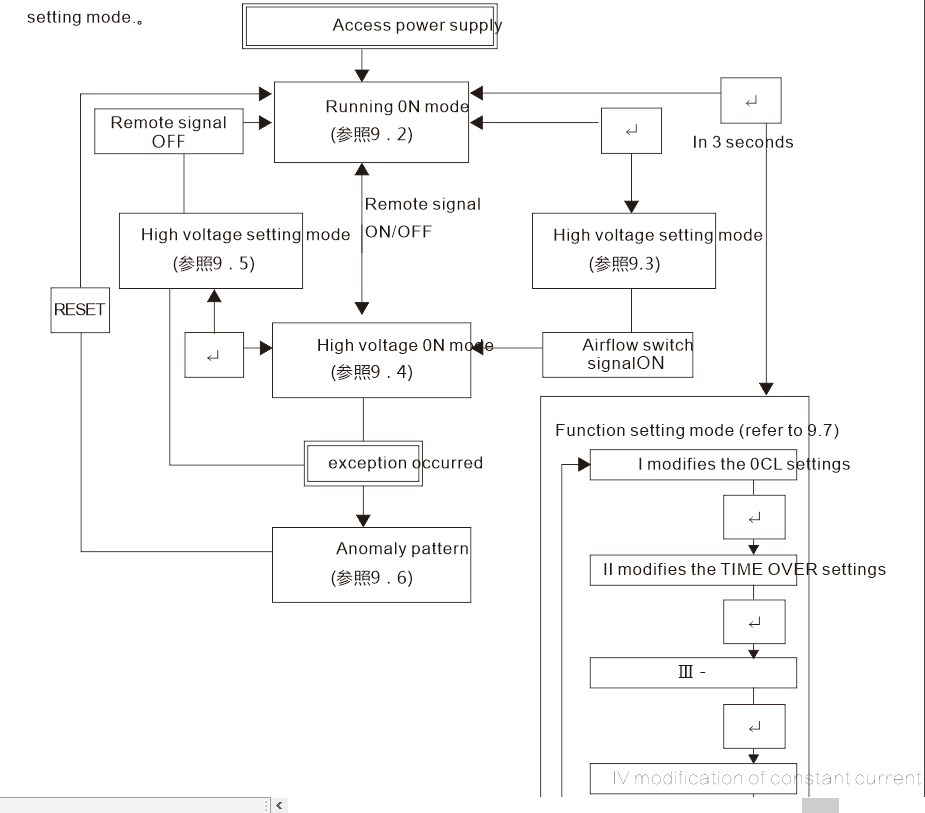

Mode change method

It can switch to run ON mode / high voltage ON mode / abnormal mode

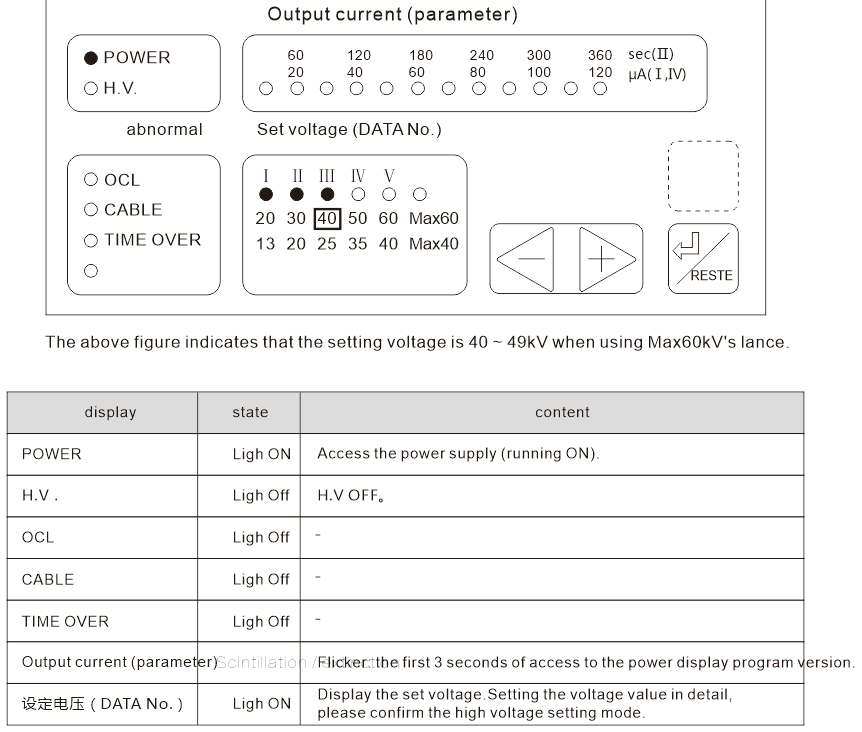

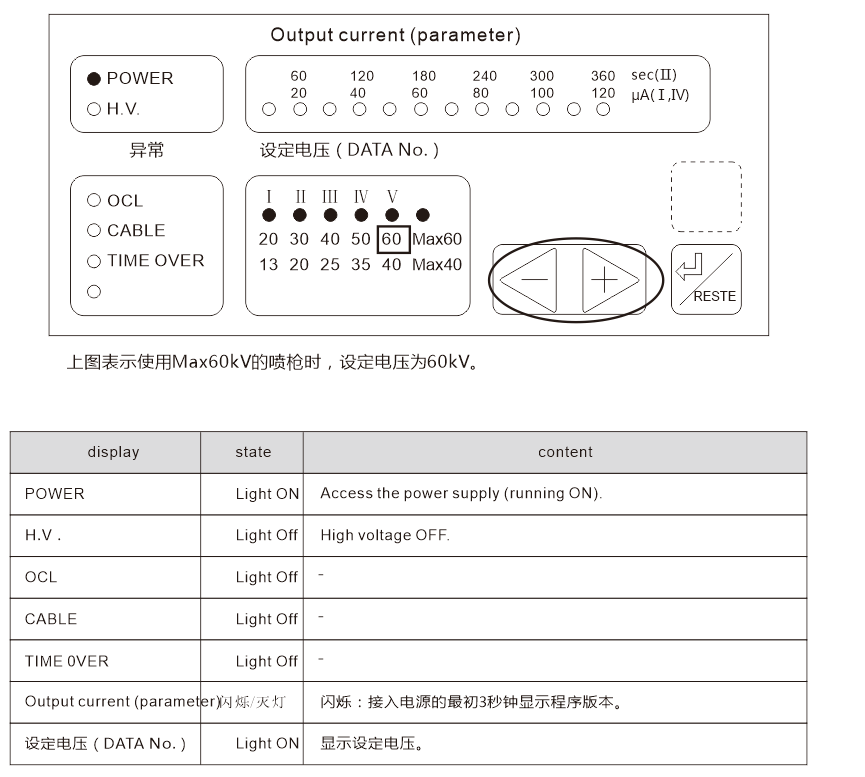

Operation and display of ON mode

1. morally connect to the power supply, and POWER LED lights can enter the running ON mode it's a state that can produce high voltage. by setting the remote signal to ON, the high voltage becomes ON,

in the first 3 seconds, the LED corresponding to the program version flickers, and the remaining LED lights up.

according to the  spraying conditions and so on, it is necessary to modify the setting voltage by pressing one + increase or decrease

Operation and display of 8.3 high voltage ON mode

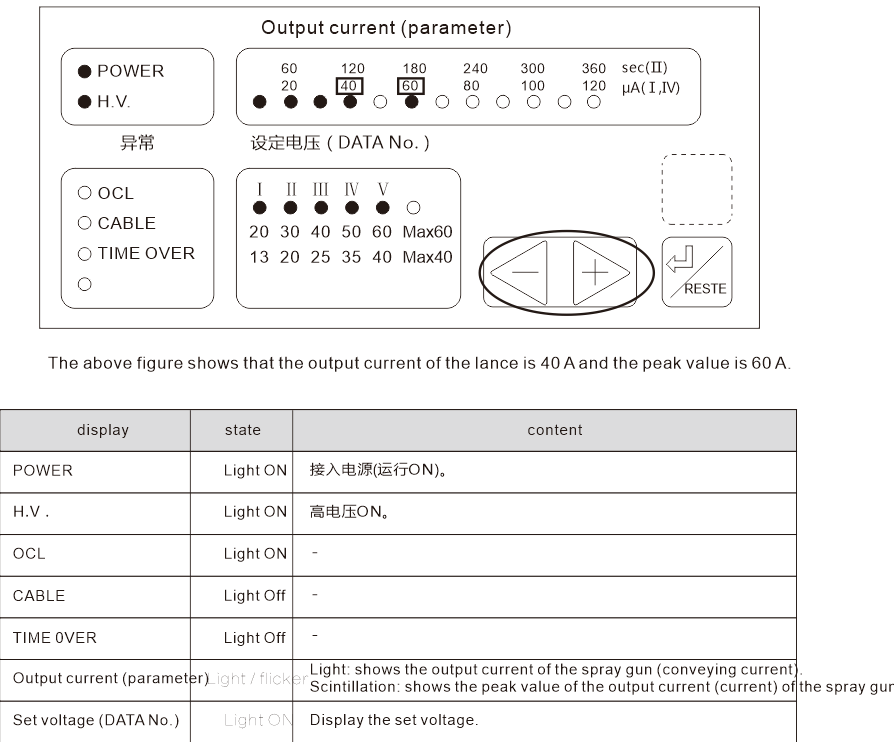

(1) in the mode of running ON mode, the remote signal is set to ON, and the "H.V." LED light is
switched to "high voltage ON".Pattern ". High voltage is in the process. "Output current" LED
(2) according to the spraying conditions, when setting the voltage, the operation can be done
according to the same operation as ON mode, by pressing "-", "+".(increase or decrease) key modification

Operation method under special mode

When Dip-SW8 (referenced to 6.3 Dip SW settings) is OFF,
the private mode is activated.Special mode is required when high voltage detailed settings or abnormal settings
are required.。

operation and display of ON mode

(1) normally connect to the power supply, and "POWER" LED lights can enter the "running ON mode"

.It is a state that can produce high voltage. By setting the remote signal to ON, the high voltage becomes ON.
