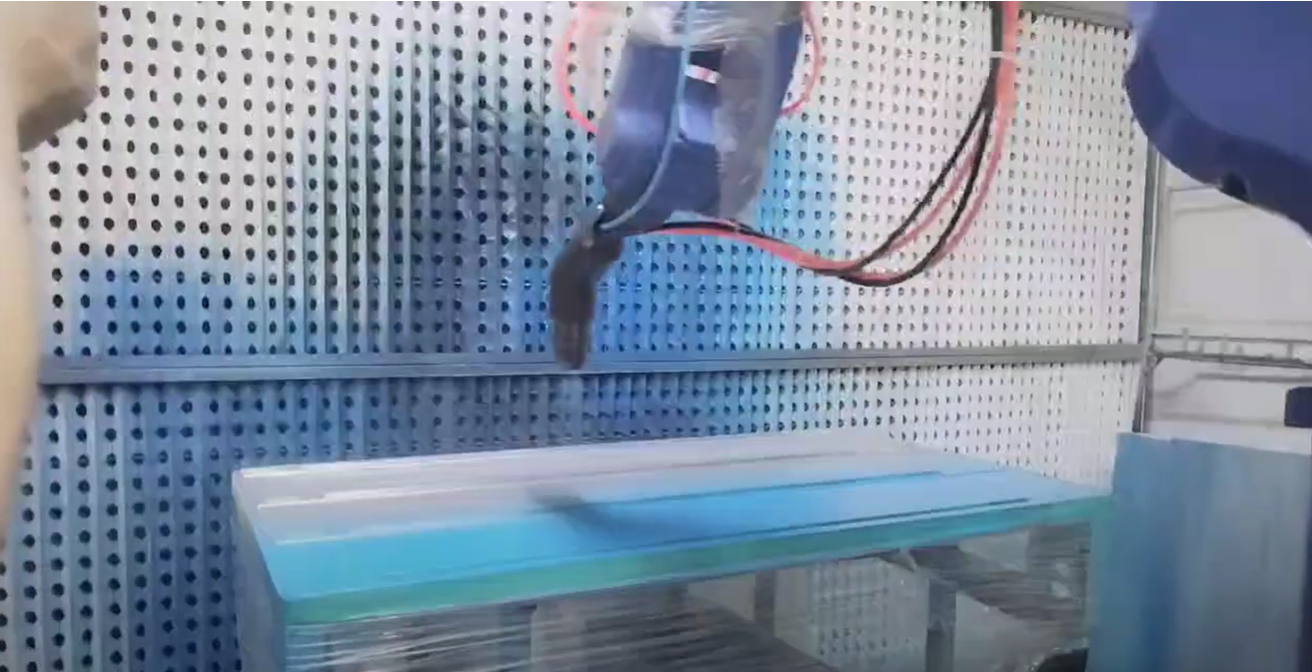

HDA-605 High-speed electrostatic spray rotating bell robotic auto surface spraying system for electric battery pack
2025.08.25
The HDA-605 high-speed electrostatic rotary bell robot automatic surface spraying system with intelligent spraying solution designed specifically for precision battery pack surface liquid paint combining high-speed electrostatic rotary bell atomization technology with robot precision control technology.
|
Amortization |
ofturbine motor | driving form | air bearing turbine |
| Bell dimension | Φ30mm, Φ50mm, Φ65 | spray width | 100-500mm |
| Max output voltage | DC-20-80KV | max output current | 300ua |
| Max flow rate | 500cc/min | Max speed | 100000rpm/min ( un-load |
| Max air consumption | 1.0Nm3/min | length | 600mm reciprocation machine |
| Weigh | 5.5kgs | electrostatic controller | HAD-203 |
| Installation method | Fixed, reciprocation machine ro coating robot |
