: HDA-1020 Electrostatic spray gun

Main Features

High safety feature

High voltage cable with detachable connector for easy maintenance

Teflon fluid hose which is easy to clean and maintain.

Max voltage DC-60 KV

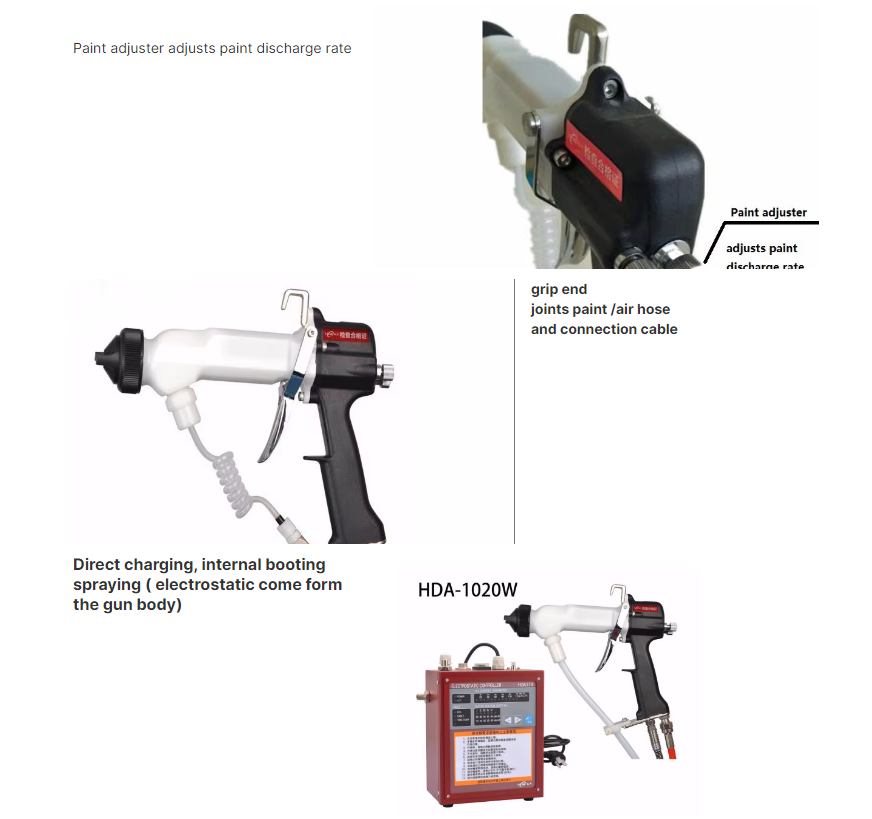

HDA- 1020 manual electrostatic spray gun

DA -1020 air electrostatic spray gun

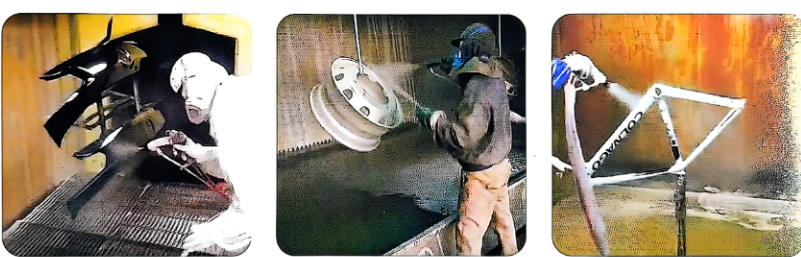

is used in liquid electrostatic spraying. It is aimed at: conventional oily coating solvent based coating, common (PU polyurethane paint, UV curing paint, acrylic paint, etc.) application industry: hardware, wood, sports equipment, automobile, etc.

National service hotline：+86 13622624429

The Details Of The HDA-1020 Electrostatic spray gun:

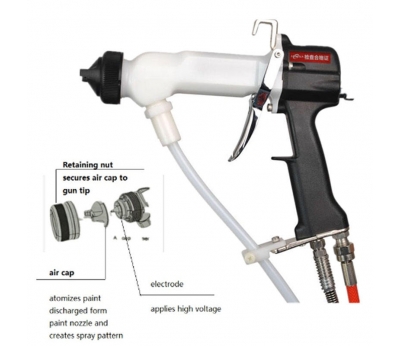

HDA-1020 manual electrostatic spray gun is the high-end and good spraying performance of spray gun. the electrostatic is in the gun body, then the static is more closer to the workpiece when spraying,

that is why the spraying effect is more better than the electrostatic in the controller. and the cables are be 15 meters long. that it is good for long length and large workpieces, such as aluminium Profile，

steel plate，trucks, containers, and high demand workpieces.

paint spray gun spare part

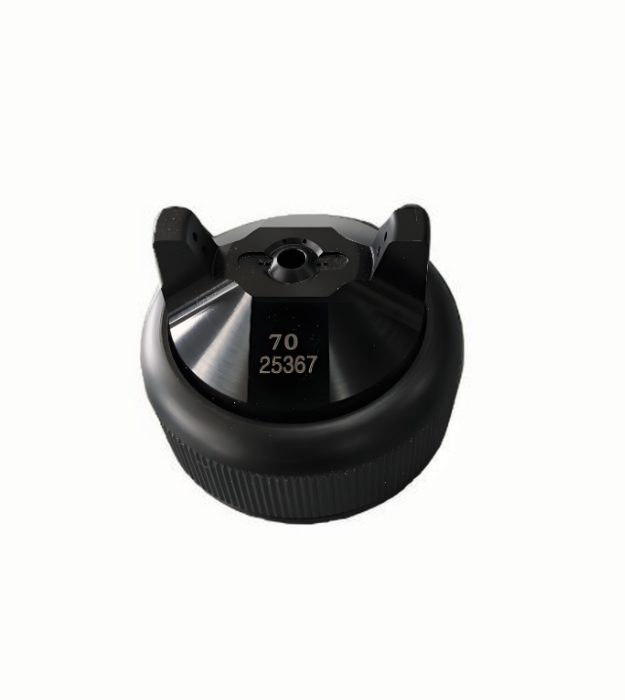

							Name:  HDA-70 sector nozzle

							Brand: HDA

							Original: China

							Bore: 1.2,1.5 mm

							atomization pressure: 0.05/ 0.15 Mpa

							paint discharge: 100-400 mi/min

							spraying swath: 100-400 mm

							air consumption: 180 Ni/min

HDA-1020 electrostatic spray gun

HAD-1020 High pressure air manual electrostatic liquid paint spray gun
Use paint : All conductive coatings / general coatings / metal paints	Model	HDA-1020
	Voltage Max	DC-60KV
	Hydraulic pressure	Common	0-0.3Mpa
		Max	0.6 Mpa
	Air pressure	Common	0.05-0.4 Mpa
		Max	0.6 Mpa
	Air consumption	350N1/min（ANR）
	Length of connecting cable	5m 8m (Max 30m)
	Weight (without cable)）	490 g

HDA liquid electrostatic spray gun

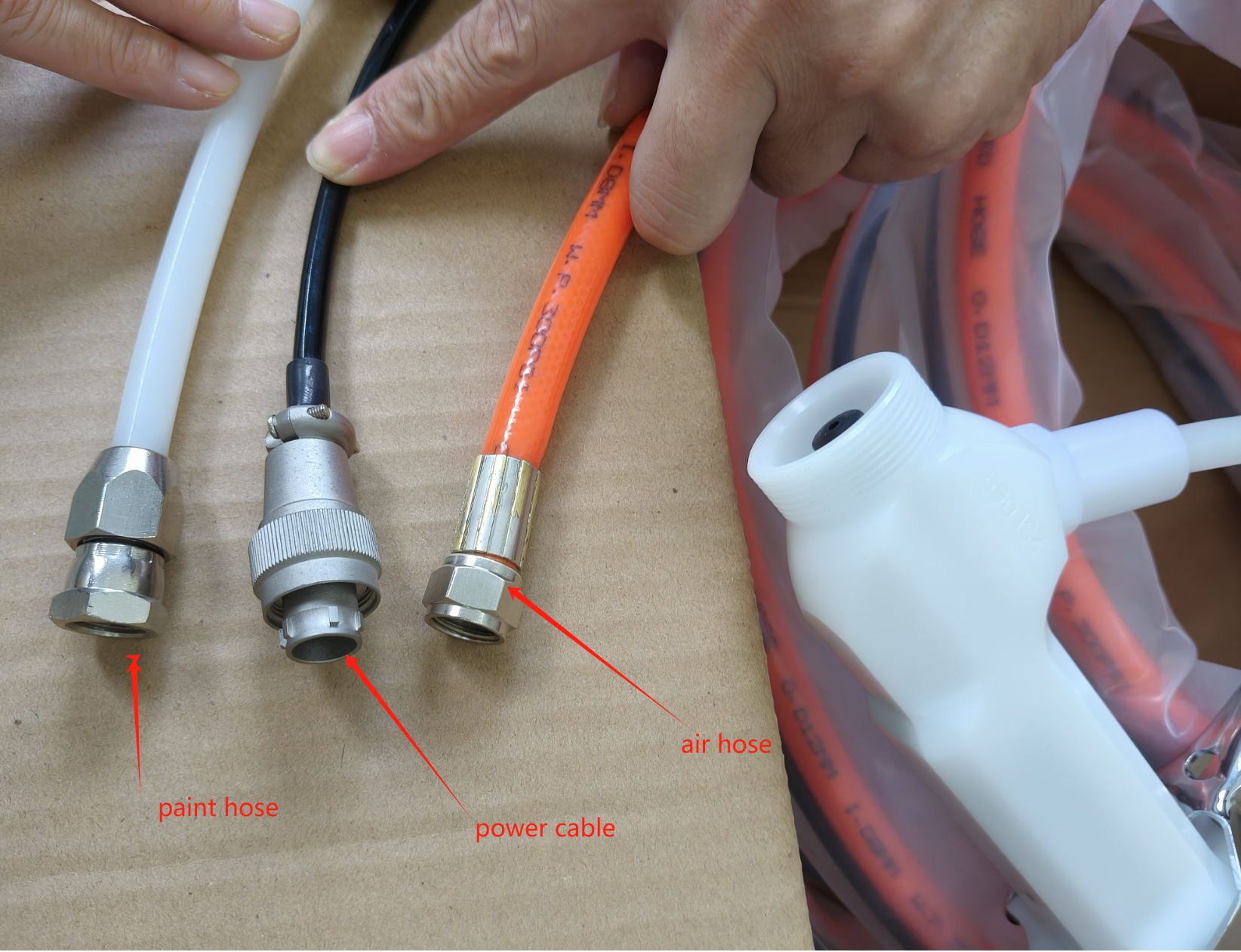

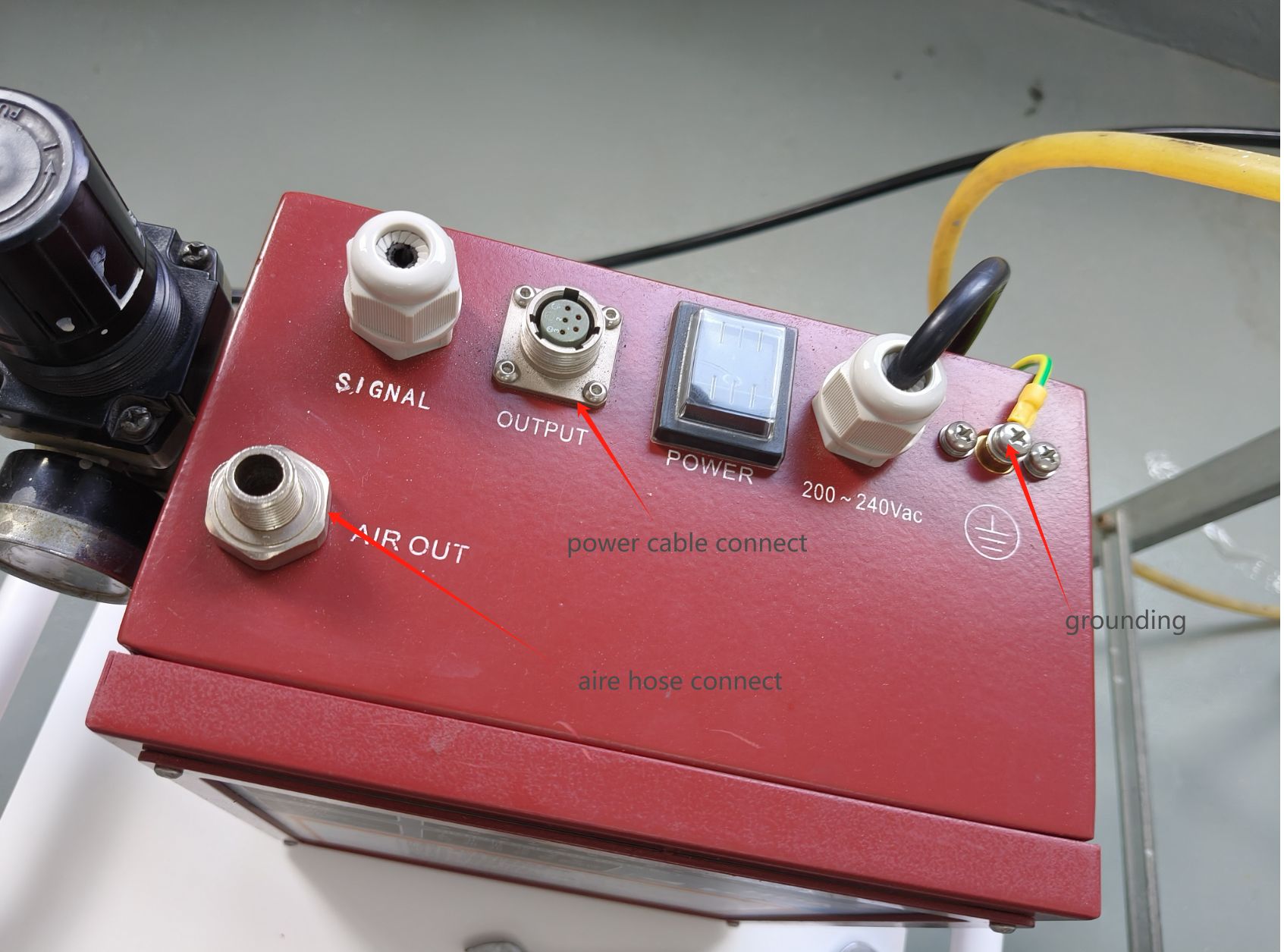

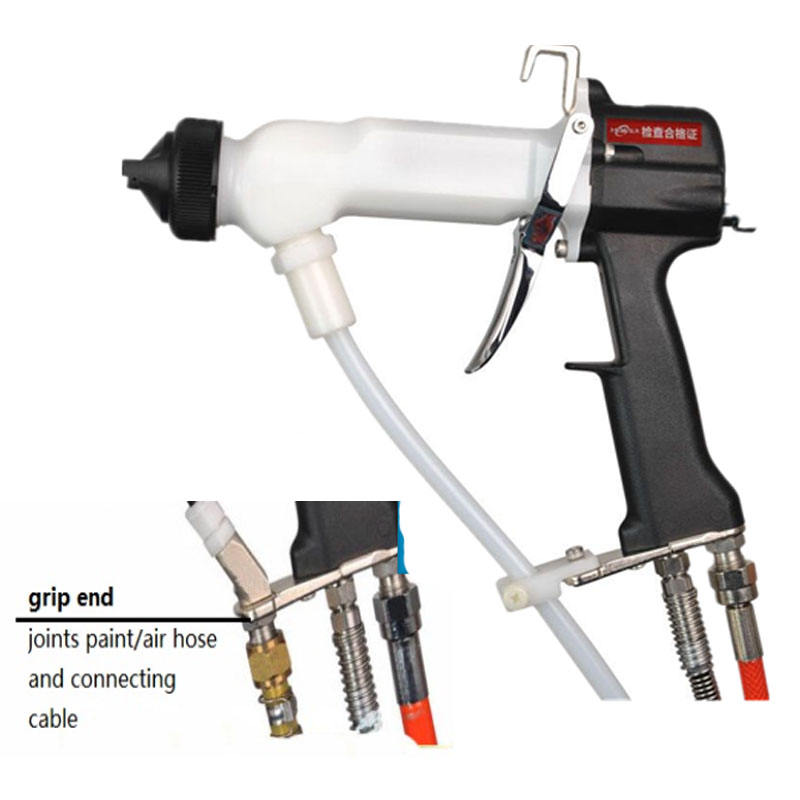

The Installation connection method:

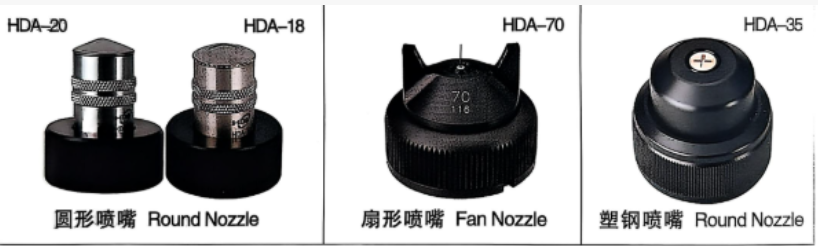

There are three types of nozzles to choose from, HDA-18 round nozzle,

HDA-35 round nozzle and HDA-70 fan nozzle. it is according to the products and atomization shape to select the nozzle.

HDA spray gun nozzle

Electrostatic paint spray gun
