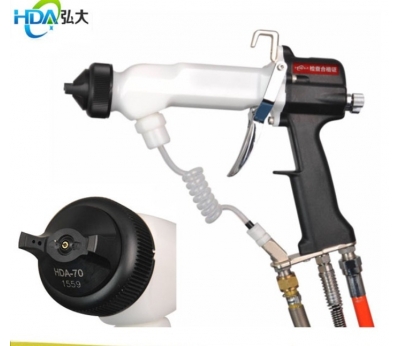

HAD-1020 High pressure air manual electrostatic liquid paint spray gun

HAD-1020 High pressure air manual electrostatic liquid paint spray gun

High efficiency  save paint - environmental protection - low pressure atomization

High efficiency coating and outstanding operability

The new design is lighter, more flexible, more suitable for long time spray use

• excellent paint effect, more efficient paint

• contribution to environmental improvement and VOC mitigation! *VOC: volatile organic compounds



National service hotline:+86 13622624429

HDA high pressure air manual electrostatic liquid paint spray gun | www.hdaspraygun.com


High security

Because the built-in high voltage generator is inside the gun body,

So high security has been achieved.

Excellent machining

Equipped with excellent micronized HDA-60 nozzle,

Advanced coating effect can be achieved.

High coating efficiency

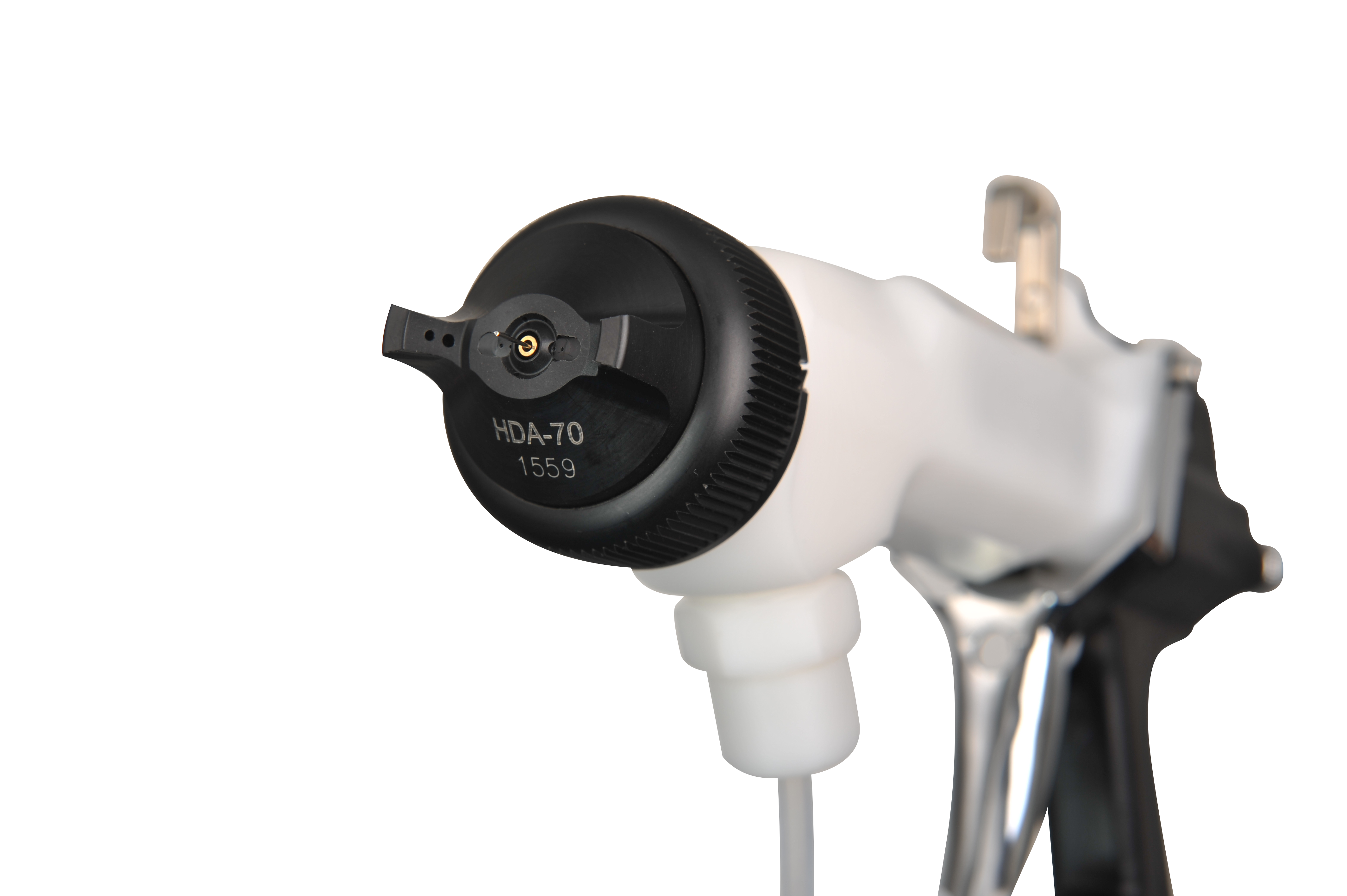

HDA-70 nozzles with excellent direct penetration and far surface arrival,

High coating efficiency can be achieved.

Seeking the most convenient use

Because it's a resin body and lightweight,

1020 liquid electrostatic spray gun handle just hold in hand, so long working hours do not feel tired.

Various adjustment and adjustment devices

As the regulator, hongda electrostatic spray gun can be easily adjusted to discharge quantity and paint spraying range.

High security Because the built-in high voltage generator is inside the gun body, So high security has been achieved. Excellent machining Equipped with excellent micronized HDA-60 nozzle, Advanced coating effect can be achieved. High coating efficiency HDA-70 nozzles with excellent direct penetration and far surface arrival, High coating efficiency can be achieved. Seeking the most convenient use Because it's a resin body and lightweight, 1020 liquid electrostatic spray gun handle just hold in hand, so long working hours do not feel tired. Various adjustment and adjustment devices As the regulator, hongda electrostatic spray gun can be easily adjusted to discharge quantity and paint spraying range.

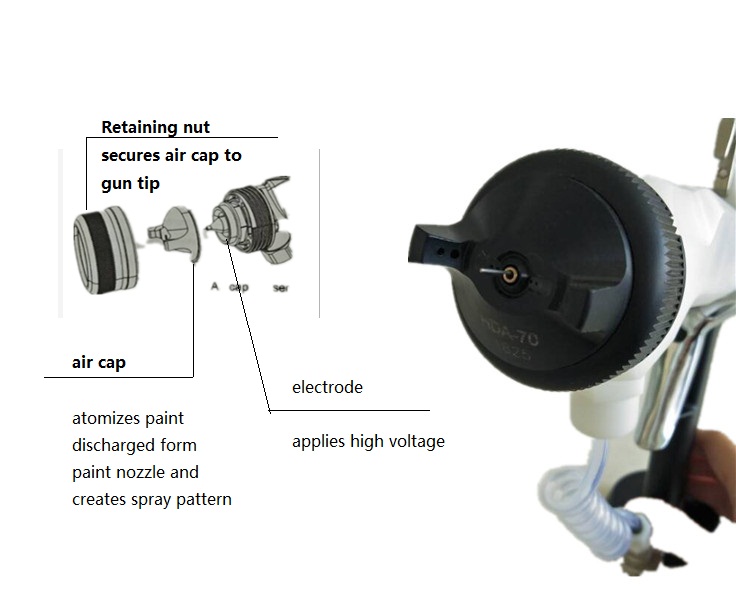

Air cap



atomizes paint discharged form paint nozzle and creates spray pattern



Electrode



applies high voltage


HDA high pressure air manual electrostatic liquid paint spray gun | www.hdaspraygun.com

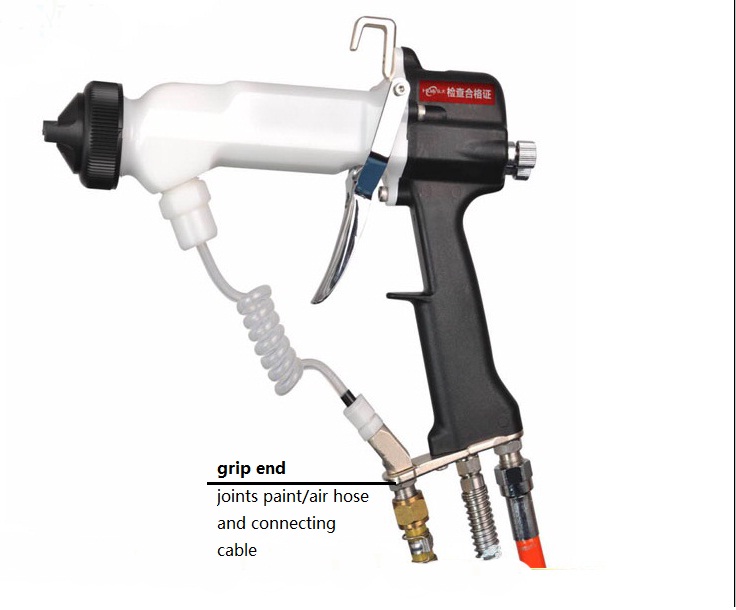

Grip end

joints paint /air hose and conection cable


HDA high pressure air manual electrostatic liquid paint spray gun | www.hdaspraygun.com

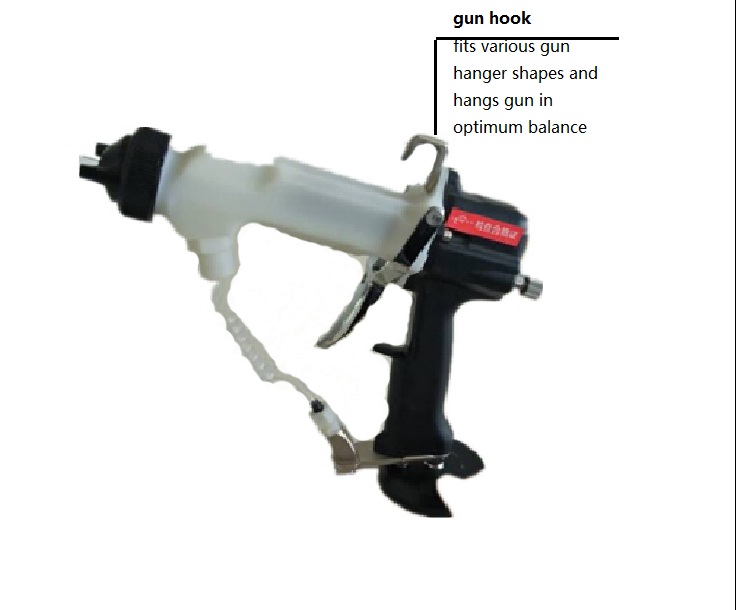

Gun hook

fits various gun hanger shapes and manual gun in optimum balance


HDA high pressure air manual electrostatic liquid paint spray gun | www.hdaspraygun.com



Paint adjuster



adjusts paint discharge

HONGDA HAD-1020 Manual electrostatic spray gun date:


Use paint

All conductive coatings / general coatings / metal paints

Model

HDA-1020

Voltage Max

DC-60KV

Hydraulic pressure

Common

0-0.3MPa

Max

0.6 MPa

Air pressure

Common

0.05-0.4 MPa

Max

0.6 MPa

Air consumption

350N1/min(ANR)

Air inlet

Screw diameter PF1/4

Paint entrance

Screw diameter  PF1/4

Full length (HDA-70)

231mm

Length of connecting cable

5m 8m (Max 30m)

Weight (without cable))

490g



HDA electrostatic liquid paint spray gun | www.hdaspraygun.com



product application



1.Car coating:car body,car parts,larger container,plastic components

2.coating electric machinery coating:Switchboard, control panel, air conditioning machine, OA machinery,     household electrical appliances

3. building materials, furniture: office machinery, steel furniture, doors and windows, walls, building materials Machinery coating:construction machinery,grinding machinery,production machinery.

 4.others:hardware coating,painting and wooden products coating;

5.Glass bottle coating, glass perfume bottle coating, glass cosmetics bottle and glass wine bottle coating

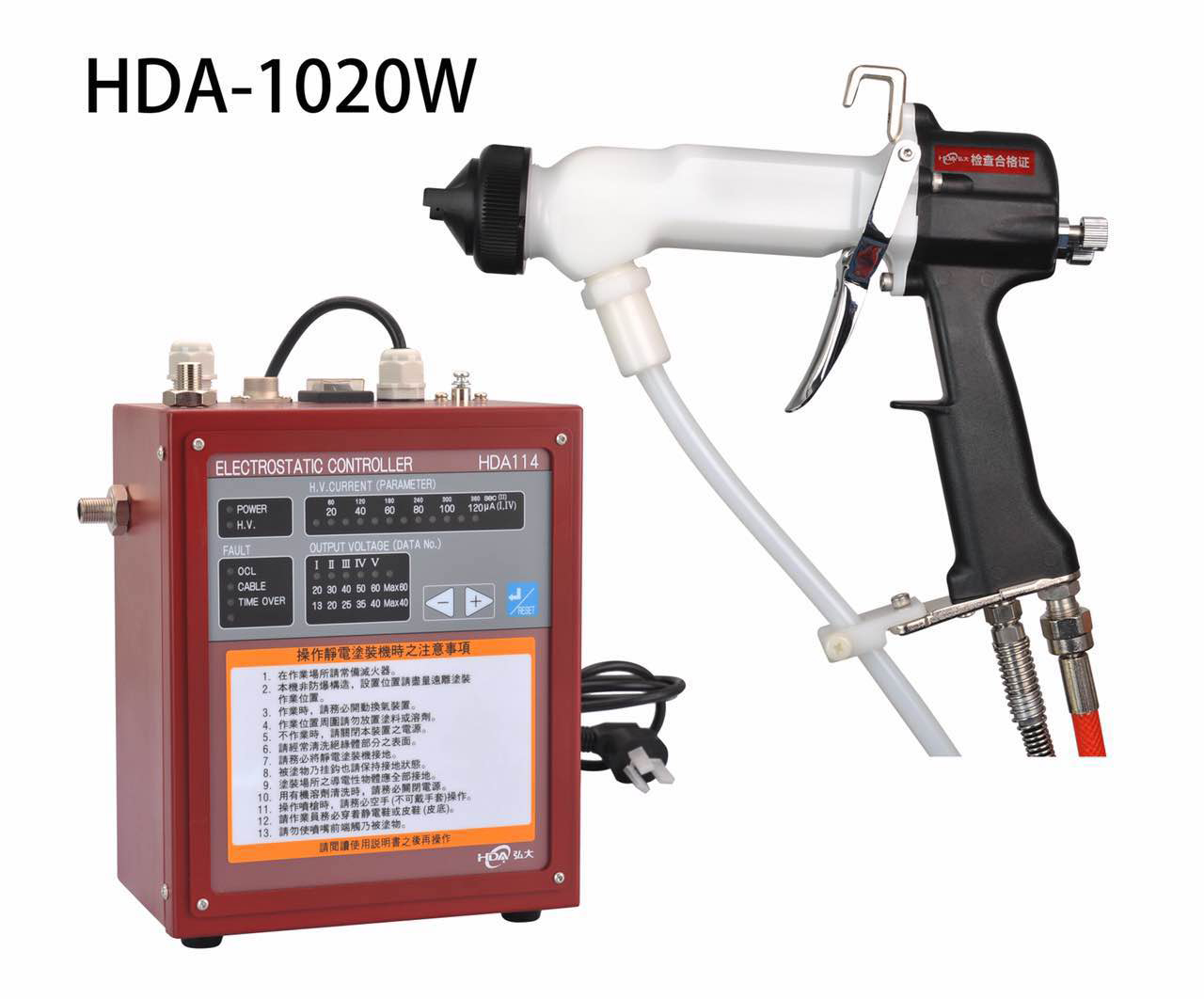

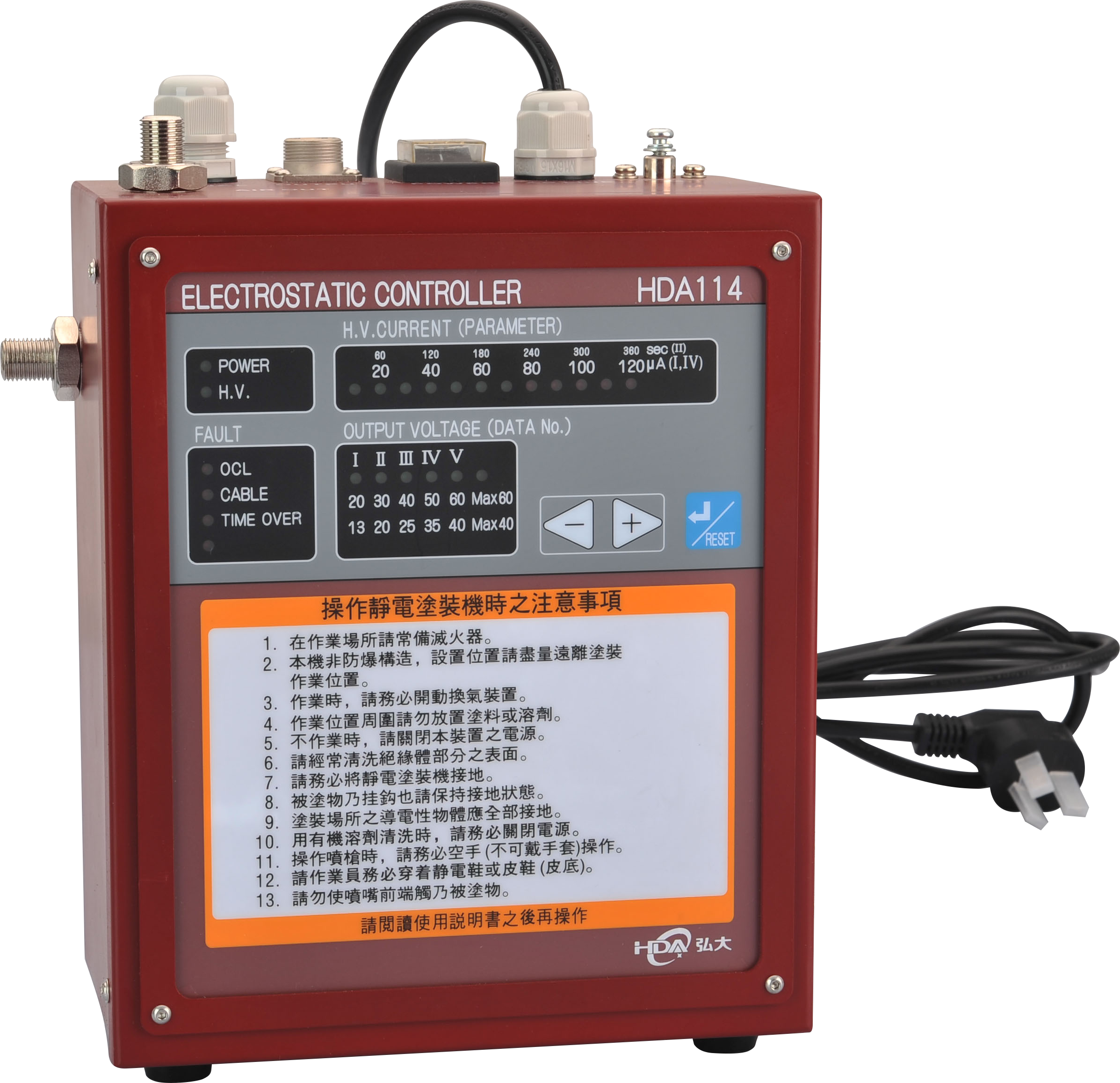

HDA114  electrostatic controller for HDA-1020 Manual electrostatic gun


HDA paint spray gun controller | www.hdaspraygun.com

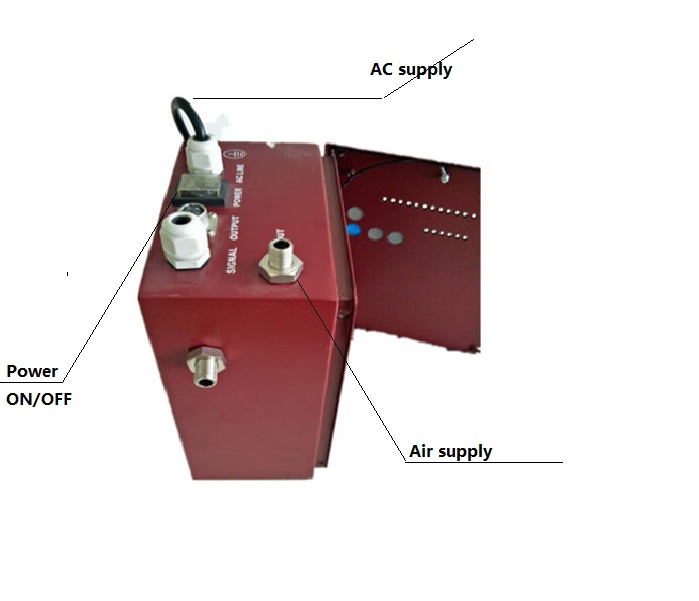

 HDA-114 controller specifications:



output adjustment

DC-20-60KV

        voltage

AC24V

Maximum current

80uA

        supply voltage

AC220V±10%

        Dimension

260X160X350mm

   application environment

temperature 0-45

 dampness 20-85

        weight

4.5kgs


hdaspray HDA-1020 electrostatic spray gun | www.hdaspraygun.com

select the hose suitable for the application



install controller outside of the coating booth and at a place at least 1.5m away from the booth opening or entrance





Hongda HDA-1020 new built-in electrostatic spray gun, lightweight, reasonable structure, good effect, fast electrostatic coating
