Smart Control With HDA-603 Electrostatic Rotary Automizer

Source: hongda Browse：5 The release date：2026.10.22 [ Large medium small ]

The core advantages of the ‌HDA-603 electrostatic rotary bell atomizer‌ are concentrated in three major dimensions: high paint saving, fine spraying, and stable durability, making it a cost-effective automated spraying solution in the industrial coating field.

⚡ Ultra-high paint utilization, greatly reducing costs

Relying on electrostatic adsorption and rotary bell atomization technology, its paint transfer efficiency exceeds ‌85%‌, and the paint application rate on complex curved surfaces can reach up to ‌90%‌. Compared with traditional air spray guns (with a utilization rate of only 30%-40%), it directly reduces paint loss by 25%, while greatly reducing overspray-induced VOC emissions and lowering environmental governance costs.

🔍 Micron-level fine atomization, excellent paint film quality

Equipped with an air-bearing turbine motor, the no-load speed of the rotary bell can reach up to ‌120,000 rpm‌, which can tear the paint into uniform fine particles of 10-30μm. The formed paint film is full, smooth and has high distinctness of image, with surface smoothness reaching the industry Class A standard, perfectly adapting to the coating of workpieces with high gloss and high appearance requirements.

🤖 Full-scenario adaptation, strong automation compatibility

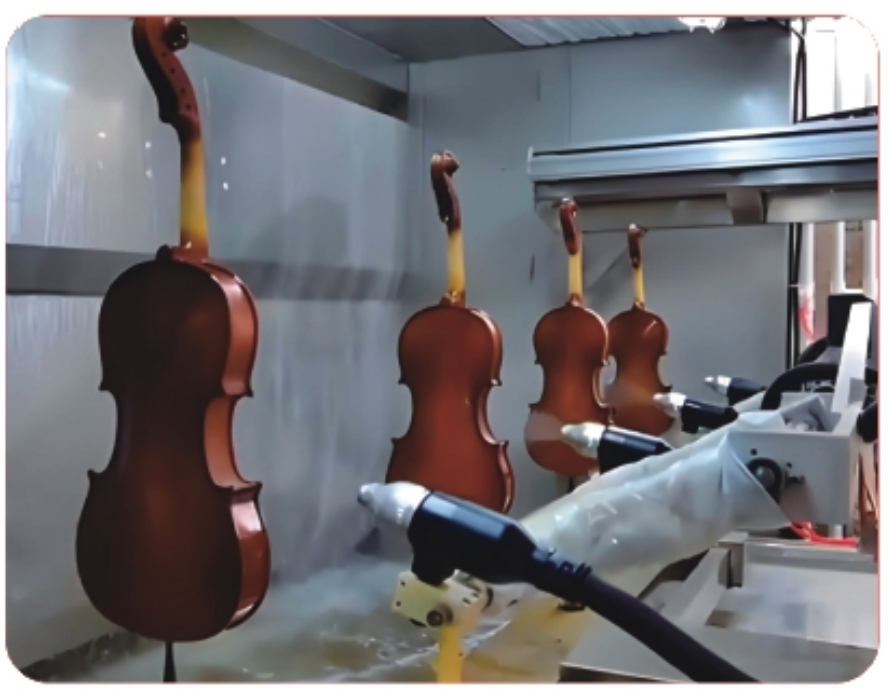

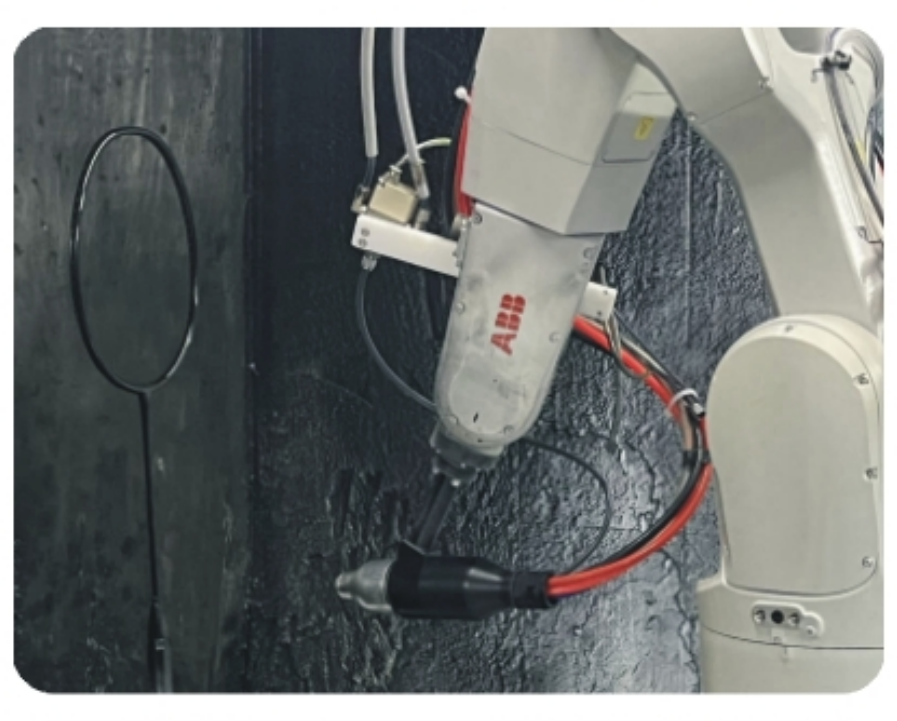

It supports multiple deployment methods such as fixed installation, reciprocating machines and robots, enabling 360° dead-angle-free spraying on complex curved surfaces and solving the corner dead-angle problem of manual spraying. At the same time, it is compatible with mainstream paints such as water-based paints and solvent-based paints, covering the coating needs of 32 industries including automotive parts, hardware, home appliances and carbon fiber sports goods.

🛠️ Stable and durable, low operation and maintenance cost

It adopts a high-wear-resistant alloy rotary bell and durable stainless steel core components, with mature and reliable turbine technology, which can operate stably 7×24 hours continuously. Local brands have a perfect localized service network, with service points in 10 provinces, providing 24-hour technical response, which improves maintenance efficiency by 30% compared with international brands, resulting in low failure rate during long-term use.
