Are the accessories for liquid electrostatic rotary bell atomizer from various brands interchangeable?

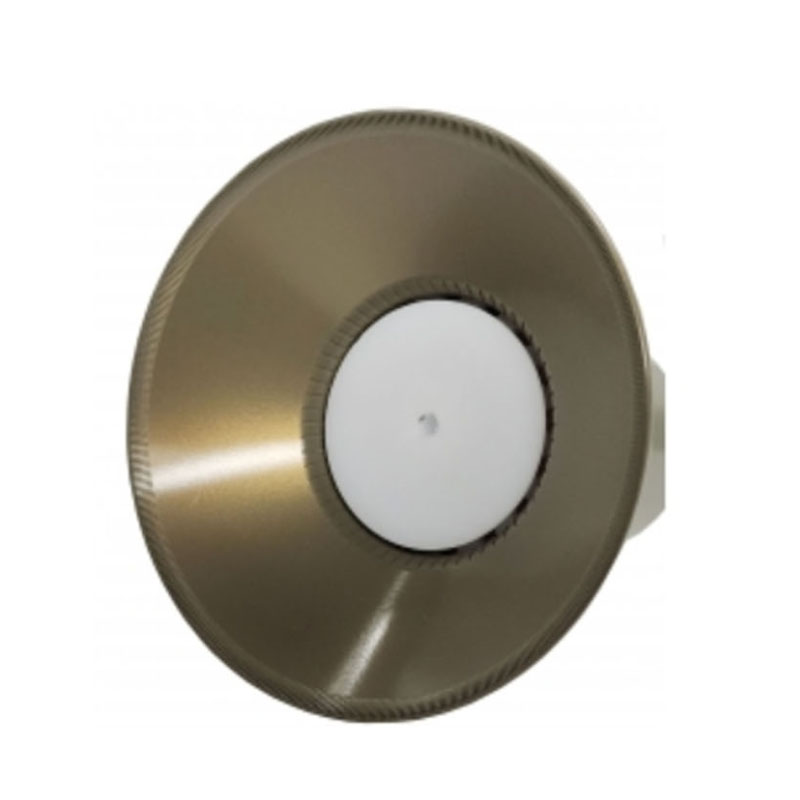

Accessories for liquid electrostatic  rotary bell atomizer from various brands are largely incompatible. Core components (rotary cup head, high-pressure generator, atomization drive interface) are all brand-specific designs, with only a few non-critical consumables (such as ordinary sealing rings and air pipe connectors) possibly being occasionally compatible. Key conclusions and reasons for incompatibility: Mechanical interface differences: The diameter of the rotary bell, thread specifications, the size of the central feed tube, and the structure of the rotary drive shaft (pneumatic turbine or motor interface) are all independent standards for each brand (such as Graco, Ransburg, Sames, etc.), making them non-interchangeable. Electrical and high-voltage systems: The voltage output logic, electrode position, and grounding protection mechanism of the high-voltage electrostatic generator are deeply coupled with the gun body; mixing them may lead to abnormal discharge or equipment damage. Fluid control matching: The paint flow control valve, nozzle diameter, and atomizing air channel are precisely matched by the original manufacturer; replacing them across brands will severely damage the atomization pattern and paint application rate. Exceptions: Some common consumable parts (such as standard O-rings, quick-connect tubing connectors, and external hoses) may be interchangeable if specifications are consistent, but actual testing is required. There is no official universal list. Key Component Compatibility Comparison: Swivel Cup Atomizer Head: Completely incompatible, involving speed balance, edge electric field distribution, and mechanical fixing methods; must be matched with the original manufacturer.

High-Voltage Cable/Generator: Incompatible; interface definitions and electrical parameters differ, and mixing them carries a risk of breakdown. Nozzle and Flow Divider: Incompatible; flow channel design determines atomization effect; cannot be interchanged between brands. Sealing Kit: Some may be compatible; inner diameter, wire diameter, and material (e.g., Viton) must be checked. It is recommended to look up by part number.

Control Handle/Trigger: Incompatible; signal transmission protocols and mechanical structures differ.

Recommended Operation:Strictly Prohibited:

Mixing core components is strictly prohibited: Installing swiveling cups or high-voltage components from different brands can easily lead to atomization failure, electrostatic discharge, or even safety accidents. Use original part numbers: When repairing or replacing, always refer to the brand's official parts list based on the spray gun model; do not rely on similar appearance." Consult system integrators: If automated production line modifications are involved, a professional manufacturer must assess interface compatibility and, if necessary, customize an adapter solution instead of direct replacement. Do you need me to compile a list of common parts number lookups for various brands of spray guns? This will allow you to quickly locate officially compatible parts.

What are the configurations of HDA air turbo high-speed electrostatic rotary bell atomizer?

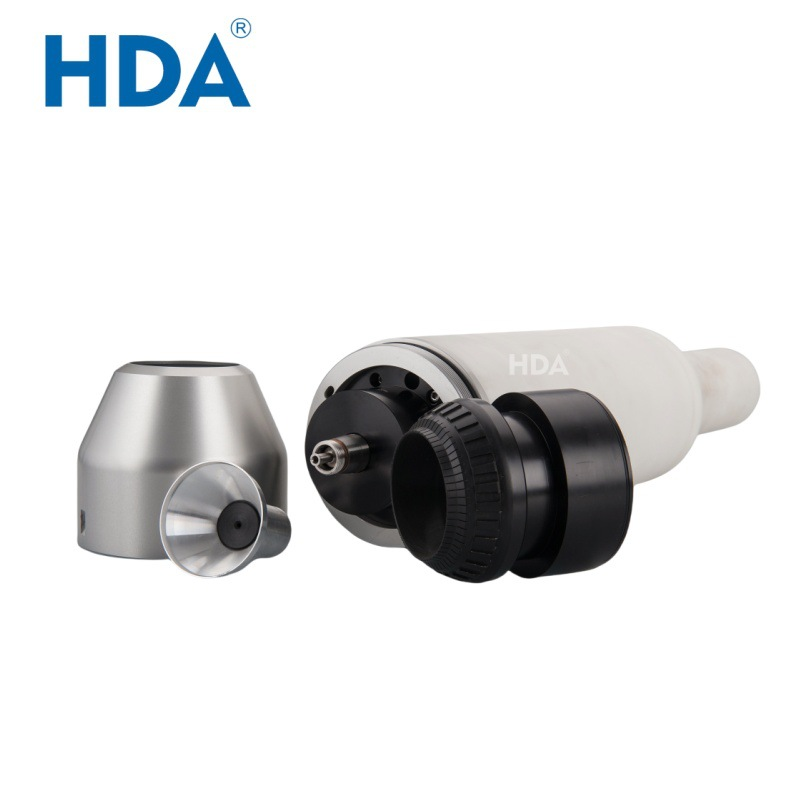

The core configuration of the HDA series (typically HDA-60) air turbine high-speed electrostatic rotary bell atomizer consists of: an external high-voltage generator (-80kV adjustable), an air bearing turbine motor (no-load ≤80,000rpm), a rotary bell assembly, and a shaping air system. Core Hardware Configuration: Drive System: Air turbine motor (air bearing/air-bearing structure), with a maximum no-load speed of 80,000rpm and an operating pressure corresponding to an airflow of approximately 400-420L/min. Electrostatic System: External high-voltage generator, outputting DC negative high voltage (typical maximum -80kV, adjustable), connected to the electrode rod/charging ring via a high-voltage cable. Atomizing Components: Rotary cup head (cup body), inner/outer air shaping cover (controlling spray width and shape), jet, electrode rod, and charging ring. Mechanical Structure: Lightweight body, flange (robot mounting interface), spacer ring, rear bracket, quick-disconnect lock nut, and grounding/high-voltage cable assembly. Weight: Approximately 2.9kg (excluding piping), suitable for robotic arm load carrying. Key Performance Indicators: Speed Range: Up to 80,000rpm unloaded, typically stable between 40,000-60,000rpm under load. Voltage Output: Adjustable DC-80kV, providing a strong electrostatic field to enhance paint adsorption (Faraday cage effect optimization). Drive Medium: Pure compressed air drives the turbine, requiring no electricity input to the nozzle, intrinsically safe. Applicable Scenarios: High-viscosity paints, metallic paints, and automated robotic spraying lines requiring high transfer efficiency. Note: HDA is often a model name specific to certain manufacturers (such as Hongda), and specific parameters may be slightly adjusted with each iteration. Actual selection should be based on the manufacturer's latest datasheet. The above data is based on the typical HDA-60 specification and similar pneumatic turbine rotary bell general standards.
