HONGDA HDA-1020 hing efficiency good atomization air pressure Manual electrostatic liquid paint spray gun

HONGDA HDA-1020 Manual electrostatic paint spray gun

It is an electrostatic spraying machine with high spraying efficiency, fine coating, good durability and high safety. It can make the operator play the most incisively and vividly.


Hotline & wechat: 86 13926859125


National service hotline:+86 13622624429

HONGDA spray electrostatic spray gun

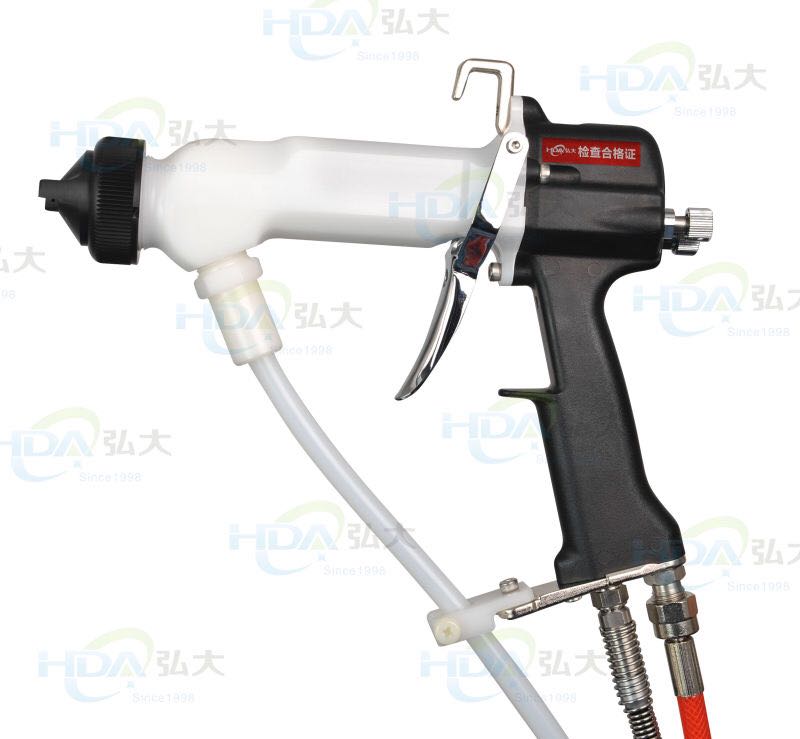

 HONGDA HDA-1020 manual liquid electrostatic spray gun


Protect environment, reduce cost, improve quality and capacity
HDA-1020 electrostatic spray gun product characteristics:
1, high safety: because the hidden high voltage generator in the gun body, so achieve high safety;
2, excellent processing: equipped with excellent direct penetration and far reaching HDA-60 nozzle, can achieve advanced coating effect;
3, high coating efficiency: with excellent direct penetration and far reaching HDA-70 nozzle, high coating efficiency can be achieved;
4, easy to use, comfortable feel: because it is a resin body, with light weight, the handle streamlined design, ergonomic, hand grip just in hand, long hours of work do not feel tired;
5, various adjustment and adjustment device: rotation regulator, you can easily adjust the amount of paint and spray width, convenient and quick;


Use:
Car: car body, auto parts, resin molding parts;
Motor: distribution box, control panel, air conditioning machine, OA machinery, household electrical appliance;
Building materials, furniture: office machinery, steel furniture, door and window frames, walls, building materials board;
Machines: building machines, machine tools, industrial machines;
Other: all metal products, gold-plated products, wooden products, etc.;
HDA-1020 manual air electrostatic spray gun parameters:

HONGDA HDA -1020 Manual electrostatic gun specification


Max voltage DC-60KV
hydraulic pressure Max 0-0.3Mpa
standard 0.6Mpa
air pressure Max 0.05-0.4Mpa
standard 0.06Mpa
       air consumption 350N1/mm
       air bore screw bore PF 1/4
       paint bore screw bore PF 1/4
       Length 231mm
      supply cable (standard) 5M/8M/30M
weight(without nozzle & cables) 490g


HDA electrostatic liquid paint spray gun | www.hdaspraygun.com

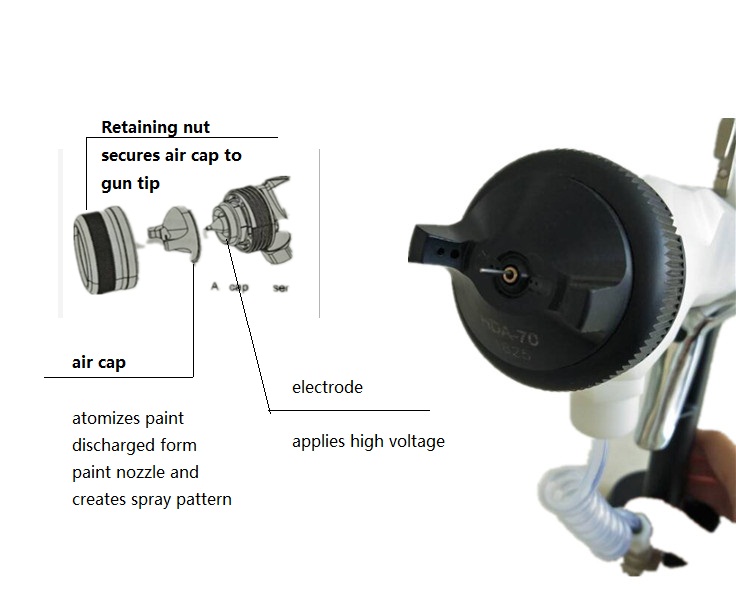

Retaining nut

secures air cap to gun tip

paint nozzle

discharges paint

air cap


atomizes paint discharged form paint nozzle and creates spray pattern

electrode

applies high voltage

HDA electrostatic liquid paint spray gun | www.hdaspraygun.com

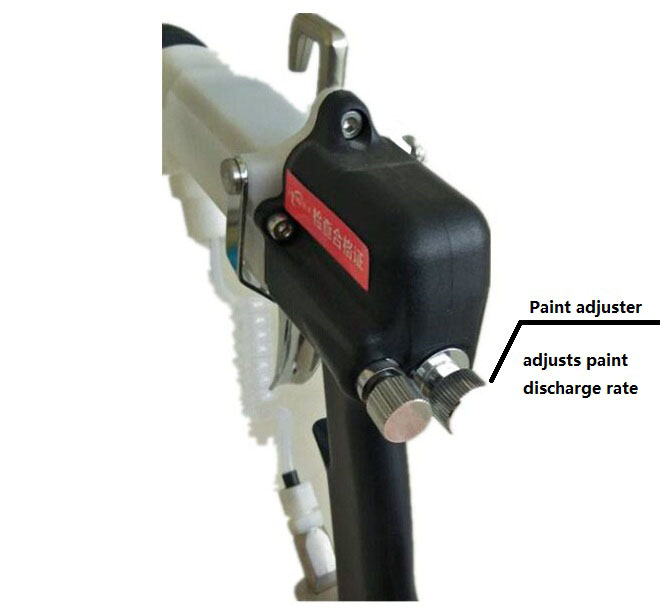

paint adjuster

adjusts paint discharge rate

HDA electrostatic liquid paint spray gun | www.hdaspraygun.com

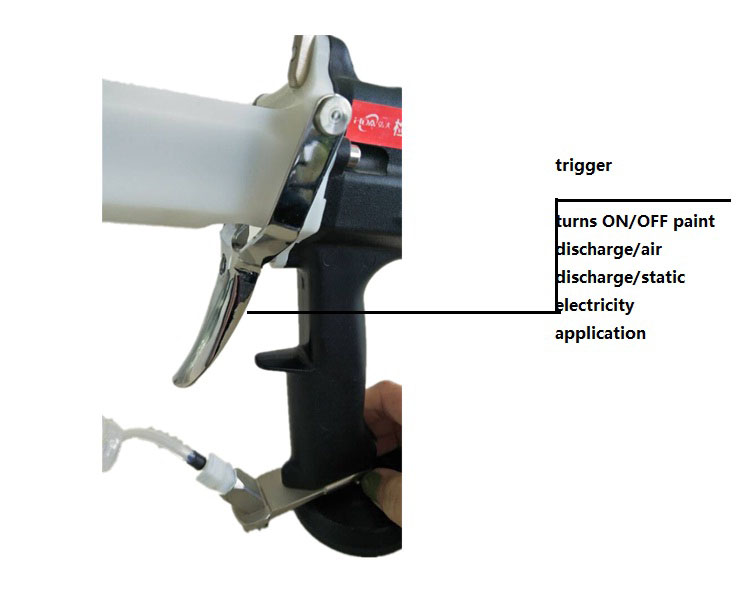

Trigger

turns ON/OFF paint discharge / air

discharge/static

electricity application

HDA electrostatic liquid paint spray gun | www.hdaspraygun.com

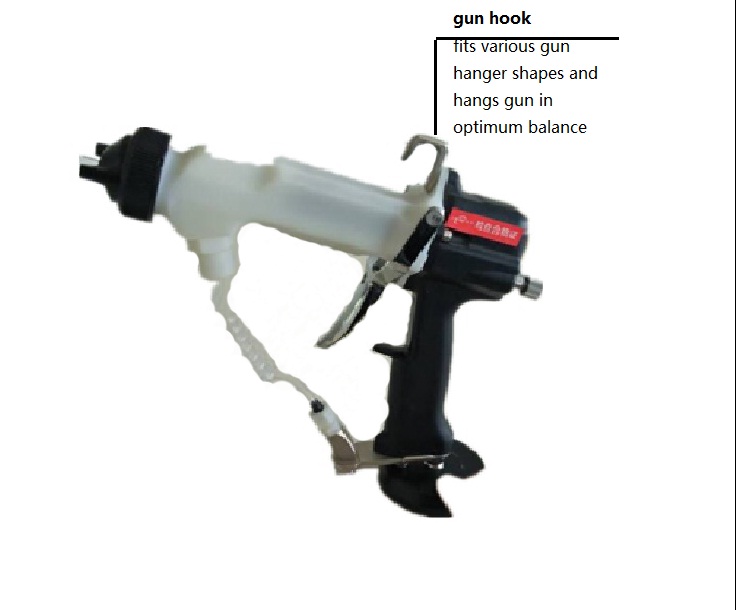

Gun hook

fits various gun hanger shapes and hangs gun in optimum balance

HDA electrostatic liquid paint spray gun | www.hdaspraygun.com

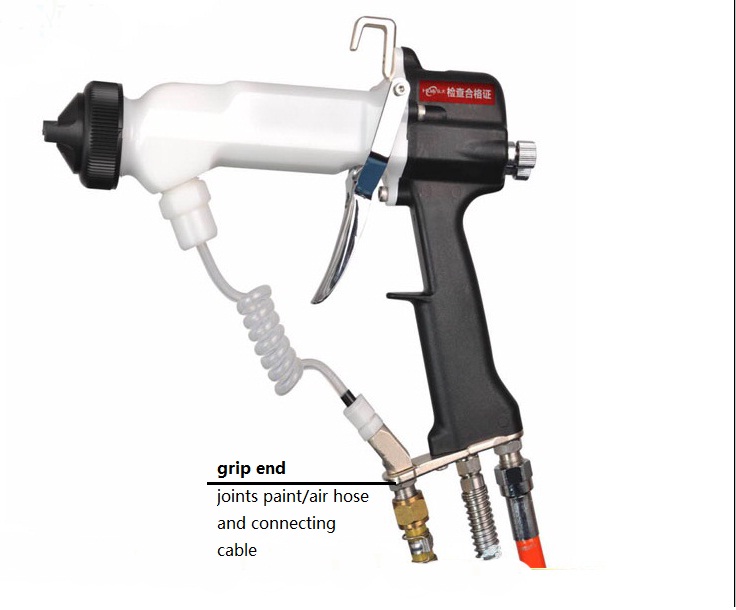

Grip end

joints paint /air hose and connection cable

electrostatic liquid paint spray gun | www.hdaspraygun.com

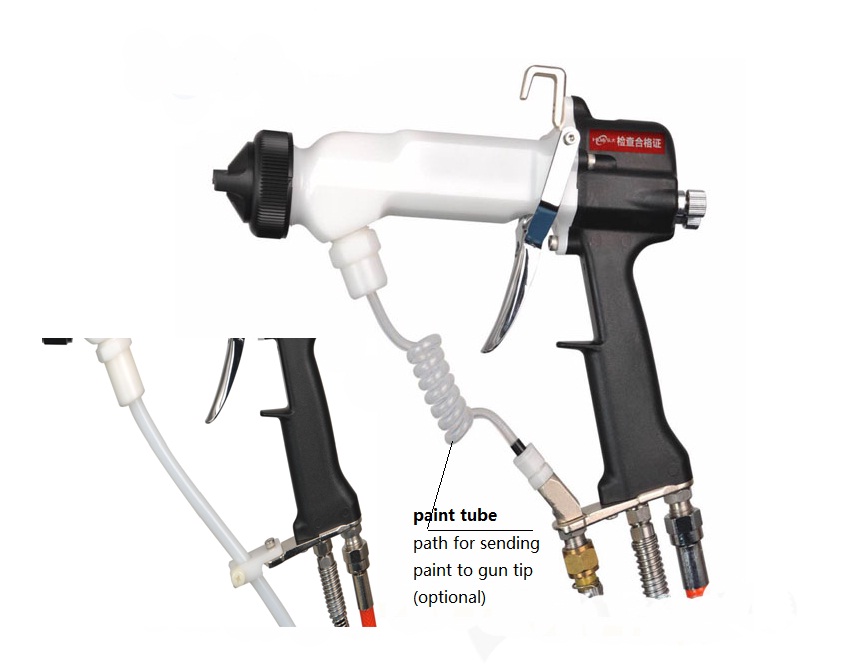

Paint dtube

path for sending paint to gun tip ( option)

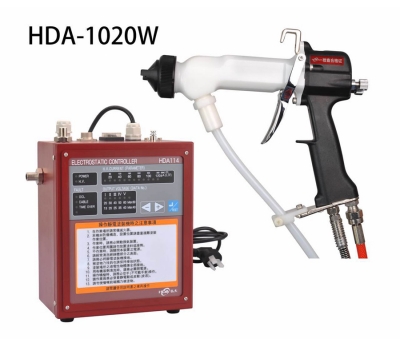

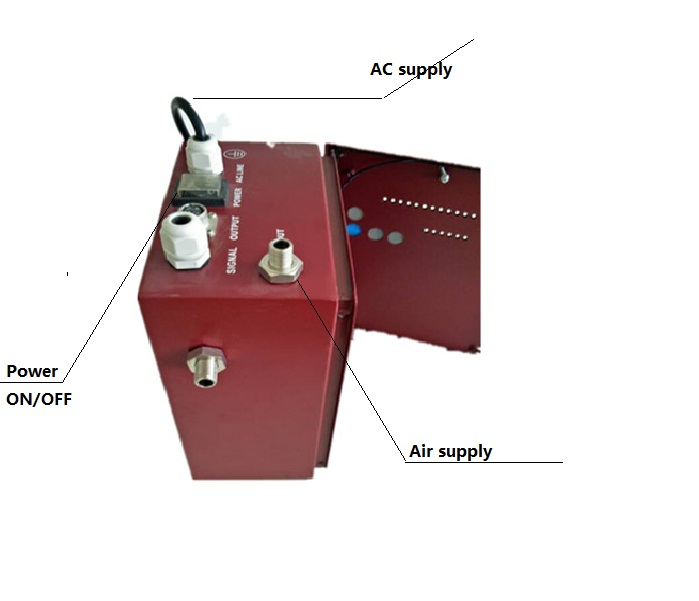

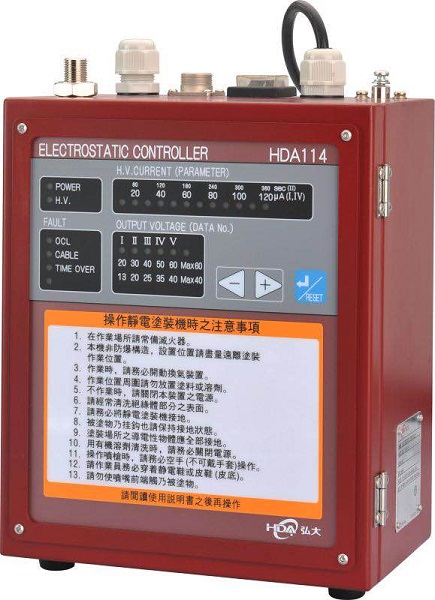

HONGDA HDA114  electrostatic controller for HDA-1020 Manual electrostatic gun




HDA-1020 electrostatic liquid paint spray gun controller sprcification


        output adjustment DC-20-60 KV
        voltage  AC 24V
Maximum current 80 uA
        supply voltage AC 220V±10%
        Dimension 260 X 160 X 350 mm
   application environment temperature 0-45℃
 dampness 20-85℃
        weight 4.5 kgs

HDA electrostatic liquid paint spray gun controller | www.hdaspraygun.com

Equipment which controls high voltage application of the cascade contained in the coating machine also it detects abnormality and performs output in current monitoring when used.

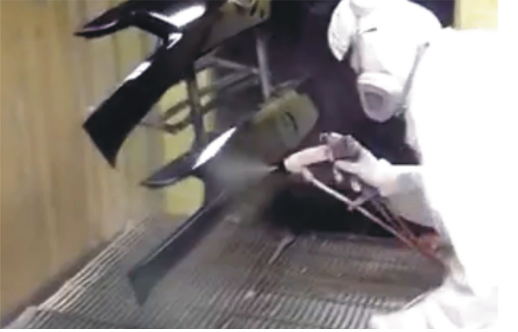

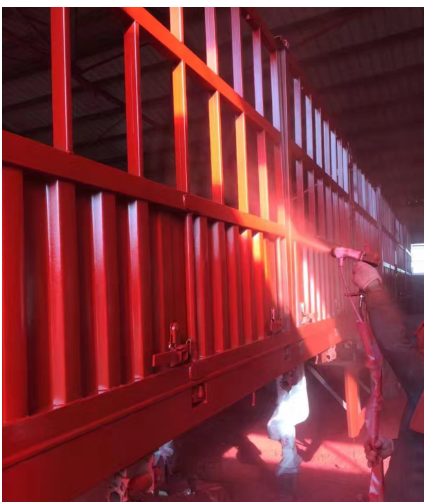

spraying demo
